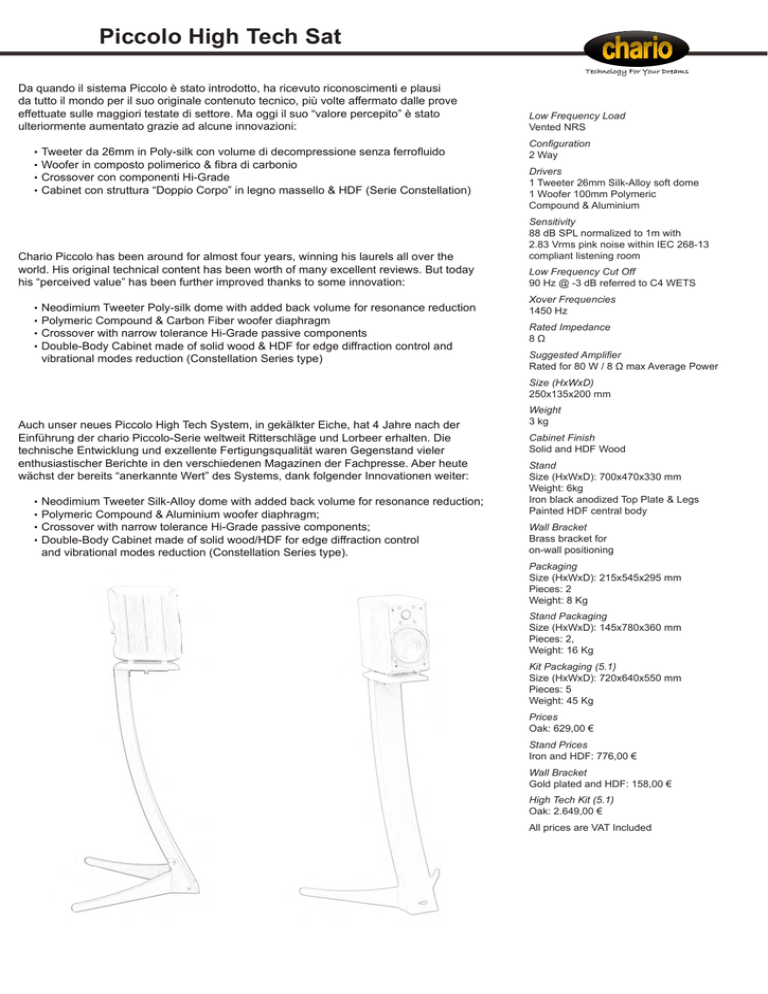

Piccolo High Tech Sat

Piccolo High Tech Sat
Da quando il sistema Piccolo è stato introdotto, ha ricevuto riconoscimenti e plausi
da tutto il mondo per il suo originale contenuto tecnico, più volte affermato dalle prove
effettuate sulle maggiori testate di settore. Ma oggi il suo “valore percepito” è stato
ulteriormente aumentato grazie ad alcune innovazioni:
• Tweeter da 26mm in Poly-silk con volume di decompressione senza ferrofluido
• Woofer in composto polimerico & fibra di carbonio
• Crossover con componenti Hi-Grade
• Cabinet con struttura “Doppio Corpo” in legno massello & HDF (Serie Constellation)
Chario Piccolo has been around for almost four years, winning his laurels all over the
world. His original technical content has been worth of many excellent reviews. But today
his “perceived value” has been further improved thanks to some innovation:
• Neodimium Tweeter Poly-silk dome with added back volume for resonance reduction
• Polymeric Compound & Carbon Fiber woofer diaphragm
• Crossover with narrow tolerance Hi-Grade passive components
• Double-Body Cabinet made of solid wood & HDF for edge diffraction control and vibrational modes reduction (Constellation Series type)
Low Frequency Load
Vented NRS
Configuration
2 Way
Drivers
1 Tweeter 26mm Silk-Alloy soft dome
1 Woofer 100mm Polymeric
Compound & Aluminium
Sensitivity
88 dB SPL normalized to 1m with
2.83 Vrms pink noise within IEC 268-13
compliant listening room
Low Frequency Cut Off
90 Hz @ -3 dB referred to C4 WETS
Xover Frequencies
1450 Hz
Rated Impedance
8Ω
Suggested Amplifier
Rated for 80 W / 8 Ω max Average Power
Size (HxWxD)
250x135x200 mm
Auch unser neues Piccolo High Tech System, in gekälkter Eiche, hat 4 Jahre nach der
Einführung der chario Piccolo-Serie weltweit Ritterschläge und Lorbeer erhalten. Die
technische Entwicklung und exzellente Fertigungsqualität waren Gegenstand vieler
enthusiastischer Berichte in den verschiedenen Magazinen der Fachpresse. Aber heute
wächst der bereits “anerkannte Wert” des Systems, dank folgender Innovationen weiter:
• Neodimium Tweeter Silk-Alloy dome with added back volume for resonance reduction;
• Polymeric Compound & Aluminium woofer diaphragm;
• Crossover with narrow tolerance Hi-Grade passive components;
• Double-Body Cabinet made of solid wood/HDF for edge diffraction control and vibrational modes reduction (Constellation Series type).
Weight
3 kg
Cabinet Finish
Solid and HDF Wood
Stand
Size (HxWxD): 700x470x330 mm
Weight: 6kg
Iron black anodized Top Plate & Legs
Painted HDF central body
Wall Bracket
Brass bracket for
on-wall positioning
Packaging
Size (HxWxD): 215x545x295 mm
Pieces: 2
Weight: 8 Kg
Stand Packaging
Size (HxWxD): 145x780x360 mm
Pieces: 2,
Weight: 16 Kg
Kit Packaging (5.1)
Size (HxWxD): 720x640x550 mm
Pieces: 5
Weight: 45 Kg
Prices
Oak: 629,00 €
Stand Prices
Iron and HDF: 776,00 €
Wall Bracket
Gold plated and HDF: 158,00 €
High Tech Kit (5.1)
Oak: 2.649,00 €
All prices are VAT Included
Piccolo High Tech Dialogue
Da quando il sistema Piccolo è stato introdotto, ha ricevuto riconoscimenti e plausi
da tutto il mondo per il suo originale contenuto tecnico, più volte affermato dalle prove
effettuate sulle maggiori testate di settore. Ma oggi il suo “valore percepito” è stato
ulteriormente aumentato grazie ad alcune innovazioni:
• Tweeter da 26mm in Poly-silk con volume di decompressione senza ferrofluido
• Woofer in composto polimerico & fibra di carbonio
• Crossover con componenti Hi-Grade
• Cabinet con struttura “Doppio Corpo” in legno massello & HDF (Serie Constellation)
Chario Piccolo has been around for almost four years, winning his laurels all over the
world. His original technical content has been worth of many excellent reviews. But today
his “perceived value” has been further improved thanks to some innovation:
• Neodimium Tweeter Poly-silk dome with added back volume for resonance reduction
• Polymeric Compound & Carbon Fiber woofer diaphragm
• Crossover with narrow tolerance Hi-Grade passive components
• Double-Body Cabinet made of solid wood & HDF for edge diffraction control and vibrational modes reduction (Constellation Series type)
Low Frequency Load
Vented NRS – TV screen 2π sr
Configuration
2way
Drivers
1 Tweeter 26mm Silk-Alloy soft dome
2 Woofers 100mm Polymeric
Compound & Aluminium
Sensitivity
88dB SPL normalized to 1 m with 2.83 Vrms
pink noise within IEC 268-13 compliant
listening room
Low Frequency Cut Off
90Hz @ -3dB referred to C4 WETS
XOver Frequencies
1,450 Hz
Rated Impedance
8Ω
Suggested Amplifier
Rated for 80W/8Ω max Average Power
Size (HxWxD)
170x360x195mm
Auch unser neues Piccolo High Tech System, in gekälkter Eiche, hat 4 Jahre nach der
Einführung der chario Piccolo-Serie weltweit Ritterschläge und Lorbeer erhalten. Die
technische Entwicklung und exzellente Fertigungsqualität waren Gegenstand vieler
enthusiastischer Berichte in den verschiedenen Magazinen der Fachpresse. Aber heute
wächst der bereits “anerkannte Wert” des Systems, dank folgender Innovationen weiter:
• Neodimium Tweeter Silk-Alloy dome with added back volume for resonance reduction;
• Polymeric Compound & Aluminium woofer diaphragm;
• Crossover with narrow tolerance Hi-Grade passive components;
• Double-Body Cabinet made of solid wood/HDF for edge diffraction control and vibrational modes reduction (Constellation Series type).
Weight
6.5kg
Cabinet Finish
Solid and HDF Wood
Packaging
Size (HxWxD): 260x425x270 mm
Pieces: 1
Weight: 7,54 Kg
Kit Packaging (5.1)
Size (HxWxD): 720x640x550 mm
Pieces: 5
Weight: 45 Kg
Prices (one piece)
Oak: 509,00 €
High Tech Kit (5.1)
Oak: 2.649,00 €
All prices are VAT Included
Piccolo High Tech SW1
Da quando il sistema Piccolo è stato introdotto, ha ricevuto riconoscimenti e plausi
da tutto il mondo per il suo originale contenuto tecnico, più volte affermato dalle prove
effettuate sulle maggiori testate di settore. Ma oggi il suo “valore percepito” è stato
ulteriormente aumentato grazie ad alcune innovazioni:
• Tweeter da 26mm in Poly-silk con volume di decompressione senza ferrofluido
• Woofer in composto polimerico & fibra di carbonio
• Crossover con componenti Hi-Grade
• Cabinet con struttura “Doppio Corpo” in legno massello & HDF (Serie Constellation)
Amplifier
Analogic Type Discrete BJT’s
Average Elctrical Power
100W
Protection
Yes
Volume Control
Yes
Cut-Off Freq. Control
Yes, continuous
Chario Piccolo has been around for almost four years, winning his laurels all over the
world. His original technical content has been worth of many excellent reviews. But today
his “perceived value” has been further improved thanks to some innovation:
• Neodimium Tweeter Poly-silk dome with added back volume for resonance reduction
• Polymeric Compound & Carbon Fiber woofer diaphragm
• Crossover with narrow tolerance Hi-Grade passive components
• Double-Body Cabinet made of solid wood & HDF for edge diffraction control and vibrational modes reduction (Constellation Series type)
Polarity Switch
Yes
Line Level Input
Mono-Stereo
unbalanced RCA pin jack
Acoustical Load
Bass Reflex NRS with
bi-exponential vent
Driver
200 mm Polymeric Compound
Low Pass Xover
40-180Hz Active 2nd order
Auch unser neues Piccolo High Tech System, in gekälkter Eiche, hat 4 Jahre nach der
Einführung der chario Piccolo-Serie weltweit Ritterschläge und Lorbeer erhalten. Die
technische Entwicklung und exzellente Fertigungsqualität waren Gegenstand vieler
enthusiastischer Berichte in den verschiedenen Magazinen der Fachpresse. Aber heute
wächst der bereits “anerkannte Wert” des Systems, dank folgender Innovationen weiter:
• Neodimium Tweeter Silk-Alloy dome with added back volume for resonance reduction;
• Polymeric Compound & Aluminium woofer diaphragm;
• Crossover with narrow tolerance Hi-Grade passive components;
• Double-Body Cabinet made of solid wood/HDF for edge diffraction control and vibrational modes reduction (Constellation Series type).
Size (HxWxD)
480x265x455mm
Weight
22kg
Cabinet Finishing
HDF wood
Packaging
Size (HxWxD): 570x520x310 mm
Pieces: 1
Weight: 23,4 Kg
Kit Packaging (5.1)
Size (HxWxD): 720x640x550 mm
Pieces: 5
Weight: 45 Kg
Prices (one piece)
Oak: 889,00 €
High Tech Kit (5.1)
Oak: 2.649,00 €
All prices are VAT Included
