the technical data sheet

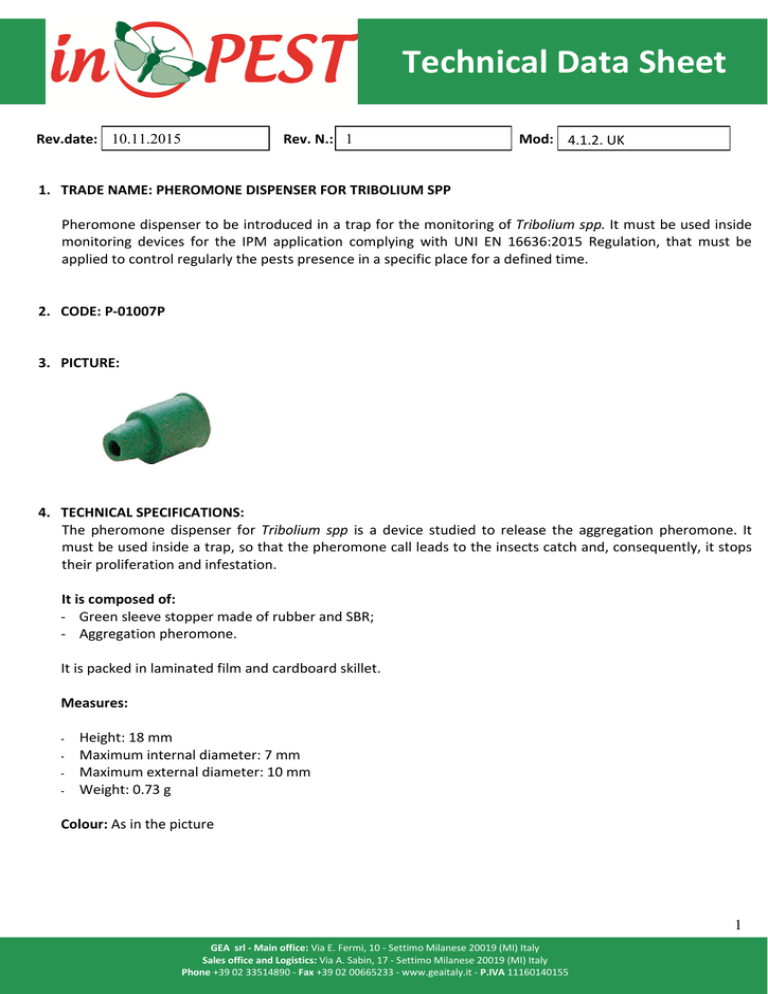

Technical Data Sheet
Rev.date: 10.11.2015
Rev. N.: 1
Mod: 4.1.2. UK
1. TRADE NAME: PHEROMONE DISPENSER FOR TRIBOLIUM SPP
Pheromone dispenser to be introduced in a trap for the monitoring of Tribolium spp. It must be used inside
monitoring devices for the IPM application complying with UNI EN 16636:2015 Regulation, that must be
applied to control regularly the pests presence in a specific place for a defined time.
2. CODE: P-01007P
3. PICTURE:
4. TECHNICAL SPECIFICATIONS:
The pheromone dispenser for Tribolium spp is a device studied to release the aggregation pheromone. It
must be used inside a trap, so that the pheromone call leads to the insects catch and, consequently, it stops
their proliferation and infestation.
It is composed of:
- Green sleeve stopper made of rubber and SBR;
- Aggregation pheromone.
It is packed in laminated film and cardboard skillet.
Measures:
-
Height: 18 mm
Maximum internal diameter: 7 mm
Maximum external diameter: 10 mm
Weight: 0.73 g
Colour: As in the picture
1
GEA srl - Main office: Via E. Fermi, 10 - Settimo Milanese 20019 (MI) Italy
Sales office and Logistics: Via A. Sabin, 17 - Settimo Milanese 20019 (MI) Italy
Phone +39 02 33514890 - Fax +39 02 00665233 - www.geaitaly.it - P.IVA 11160140155
Technical Data Sheet
Rev.date: 10.11.2015
Rev. N.: 1
Mod: 4.1.2. UK
5. HOW TO USE:
Place the above mentioned pheromone dispenser:
Place the pheromone dispenser for Tribolium spp inside 3WAY trap (code: P-04031). This trap must be placed
on the floor.
This trap must be used inside food industries, storehouses, silo and all those places where it is stocked: wheat
and flour.
We suggest you to give a number to each trap and indicate its placement in the monitored area plan, in order
to facilitate the check during the periodic monitoring.
Theoretical covered area: 10 m2.
Suggested monitoring period: all the year long.
Suggested frequency of the controls: change the pheromone dispenser after two months.
Storage conditions: in a cool and dry room, temperature below 25°C and R.H. below 55%.
If well stored (intact packaging), the product shelf life is 3 years. From the pack opening, the pheromone lasts
60 days.
6. PACKAGING AND SPARE PARTS:
- Skillet: 15 pcs (sales unit), packed in laminated film (n.3 pieces per strip, for a total of 5 packs per skillet);
- Case: 60 skillets;
- Pallet: 5040 pieces/pallet; 3620 cases/pallet; 14 master carton/pallet; pallet: 80x120x150 (h).
7. DISPOSAL CONSIDERATIONS:
Waste disposal should be in accordance with existing Community , National and local regulations.
