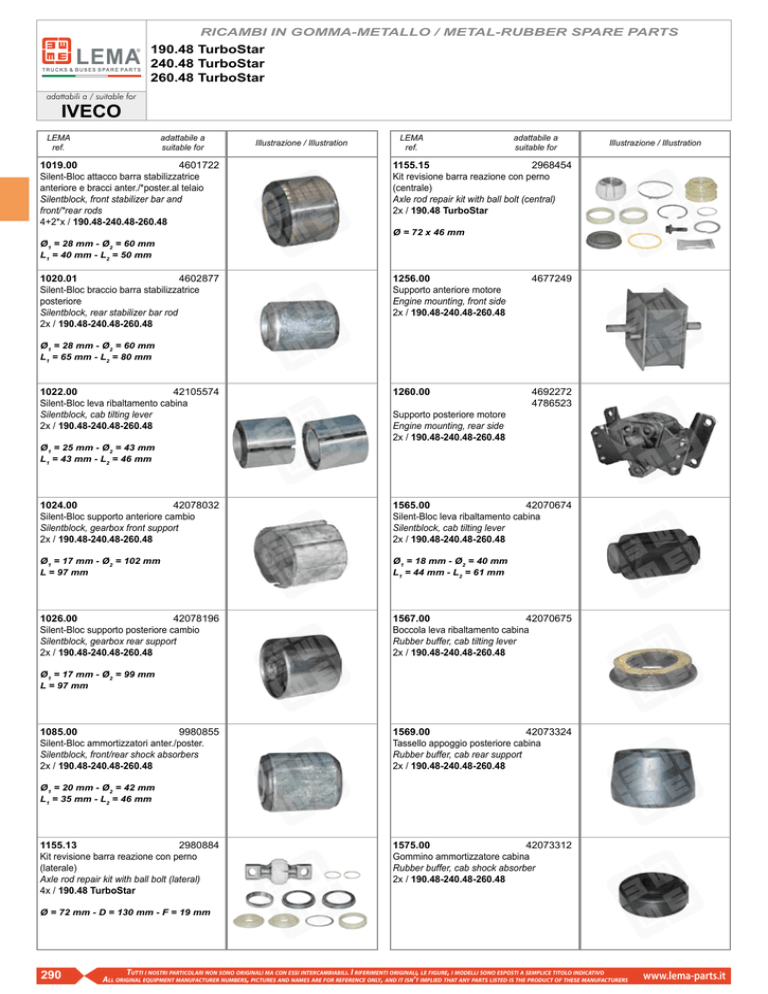

www.lema-parts.it 290 190.48 TurboStar 240.48 TurboStar 260.48

RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.48 TurboStar
240.48 TurboStar
260.48 TurboStar
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
1019.00
4601722
Silent-Bloc attacco barra stabilizzatrice
anteriore e bracci anter./*poster.al telaio
Silentblock, front stabilizer bar and
front/*rear rods
4+2*x / 190.48-240.48-260.48
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
1155.15
2968454
Kit revisione barra reazione con perno
(centrale)
Axle rod repair kit with ball bolt (central)
2x / 190.48 TurboStar
Ø = 72 x 46 mm
Ø1 = 28 mm - Ø2 = 60 mm
L1 = 40 mm - L2 = 50 mm
1020.01
4602877
Silent-Bloc braccio barra stabilizzatrice
posteriore
Silentblock, rear stabilizer bar rod
2x / 190.48-240.48-260.48
1256.00
Supporto anteriore motore
Engine mounting, front side
2x / 190.48-240.48-260.48
4677249
1260.00
4692272
4786523
Ø1 = 28 mm - Ø2 = 60 mm
L1 = 65 mm - L2 = 80 mm
1022.00
42105574
Silent-Bloc leva ribaltamento cabina
Silentblock, cab tilting lever
2x / 190.48-240.48-260.48
Supporto posteriore motore
Engine mounting, rear side
2x / 190.48-240.48-260.48
Ø1 = 25 mm - Ø2 = 43 mm
L1 = 43 mm - L2 = 46 mm
1024.00
42078032
Silent-Bloc supporto anteriore cambio
Silentblock, gearbox front support
2x / 190.48-240.48-260.48
1565.00
42070674
Silent-Bloc leva ribaltamento cabina
Silentblock, cab tilting lever
2x / 190.48-240.48-260.48
Ø1 = 17 mm - Ø2 = 102 mm
L = 97 mm
Ø1 = 18 mm - Ø2 = 40 mm
L1 = 44 mm - L2 = 61 mm
1026.00
42078196
Silent-Bloc supporto posteriore cambio
Silentblock, gearbox rear support
2x / 190.48-240.48-260.48
1567.00
42070675
Boccola leva ribaltamento cabina
Rubber buffer, cab tilting lever
2x / 190.48-240.48-260.48
Ø1 = 17 mm - Ø2 = 99 mm
L = 97 mm
1085.00
9980855
Silent-Bloc ammortizzatori anter./poster.
Silentblock, front/rear shock absorbers
2x / 190.48-240.48-260.48
1569.00
42073324
Tassello appoggio posteriore cabina
Rubber buffer, cab rear support
2x / 190.48-240.48-260.48
Ø1 = 20 mm - Ø2 = 42 mm
L1 = 35 mm - L2 = 46 mm
1155.13
2980884
Kit revisione barra reazione con perno
(laterale)
Axle rod repair kit with ball bolt (lateral)
4x / 190.48 TurboStar
1575.00
42073312
Gommino ammortizzatore cabina
Rubber buffer, cab shock absorber
2x / 190.48-240.48-260.48
Ø = 72 mm - D = 130 mm - F = 19 mm
290
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
www.lema-parts.it
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.48 TurboStar
240.48 TurboStar
260.48 TurboStar
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
1607.30
42052764
Paracolpi fogli balestre anteriori
Rubber buffer, front leaf springs
8x / 190.48-240.48-260.48
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
2536.00
4688153
Boccola barra stabilizzatrice posteriore
Rubber bush, rear stabilizer bar
2x / 190.48-240.48-260.48
Ø = 50 mm - L = 78 mm
1649.00
4714376
Tampone sospensione pneumatica
Rubber buffer, air spring suspension
2x / 190.48
2553.00
7984329
Cuffia copridado gancio traino
Rubber cap, trailer coupling castle nut
190.48-240.48-260.48
1677.00
4703402
Paracolpo appoggio posteriore cabina
Rubber buffer, cab rear side
2x / 190.48-240.48-260.48
2582.00
1678.00
4715638
Paracolpo balestra posteriore
Rubber bump stop, rear leaf springs
2x / 190.48-240.48
2644.00
4731981
Boccola barra stabilizzatrice anteriore
Rubber bush, front stabilizer bar
2x / 190.48-240.48-260.48
4691818
42065903
Gommino tirante correttore di frenata
Rubber lug, braking complem. fitting
190.48
Ø = 44 mm - L = 70 mm
POLIURETANO / POLYURETHANE
1903.00
Cuffia asta comando cambio
Hood, gear shift rod
190.48-240.48-260.48
4725395
Cambio / Gearbox FULLER
2647.00
4735723
Boccola barra stabilizzatrice posteriore
Rubber bush, rear stabilizer bar
2x / 190.48
Sosp. pneum. / Air spring suspension
Ø = 52 mm - L = 93 mm
Vulkollan BAYER D15
1906.00
Cuffia leva cambio
Hood, gear shift lever
190.48-240.48-260.48
4725239
2650.00
4740646
Boccola barra stabilizzatrice posteriore
Rubber bush, rear stabilizer bar
2x / 190.48
Sosp. pneum. / Air spring suspension
Ø = 60 mm - L = 94 mm
POLIURETANO / POLYURETHANE
2318.05
8975500204/K
Gommino giunto di accoppiamento
comando pneumatico freni
Rubber seal ring, coupling head (suzie
brake)
190.48-240.48-260.48
2653.00
4734043
Silentblock, barra di torsione posteriore
Silentblock, rear torsion rod
4x / 190.48 TurboStar
Sosp. pneum. / Air spring suspension
Ø = 75 mm - D = 114 mm - F = 16 mm
www.lema-parts.it
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
291
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.48 TurboStar
240.48 TurboStar
260.48 TurboStar
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
2715.00
42087410
Supporto albero di trasmissione
Propeller shaft carrier
190.48-240.48-260.48
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
3110.00
98421380
Manicotto entrata acqua scambiatore
Water hose, heat exchanger inlet
190.48-240.48-260.48
KLEIN (Ghisa-Cast iron)
Ø = 70 mm - P = 43 mm
D = 220 mm - H = 90 mm
Ø = 45 mm - L = 80 mm
2719.00
42087542
Supporto albero di trasmissione
Propeller shaft carrier
190.48-240.48-260.48
3277.00
4613592
Manicotto uscita acqua termostati
Water hose, thermostats outlet
190.48-240.48-260.48
SILICONE
GWB (Ghisa-Cast iron)
Ø = 70/78 mm - P = 20 mm
D = 220 mm - H = 90 mm
Ø = 45 mm - L = 70 mm
2839.00
42493640
Tappo ispezione freni anteriori/posteriori
Rubber plug, front/rear brakes control
24x / 190.48-240.48-260.48
3278.00
Tela di vetro / Glass fiber cover
4863960
98420477
Manicotto uscita acqua termostati
Water hose, thermostats outlet
190.48-240.48-260.48
Ø = 45 mm - L = 70 mm
SILICONE
2842.00
42480064
Tappo ispezione freni anteriori/posteriori
Rubber plug, front/rear brakes control
16x / 190.48-240.48-260.48
3350.00
4690924
Manicotto tubazione entrata olio motore
Oil hose, engine oil filling pipe
190.48-240.48-260.48
Ø = 33 mm
2863.00
42488736
Cuffia protezione freni posteriori
Hood, rear brakes cover
2x / 190.48-240.48-260.48
3351.00
Manicotto sfiato motore
Air hose, engine vent
190.48-240.48-260.48
4865232
Freni a tamburo / Drum brake
Ø = 20/30 mm
2866.00
42488737
Cuffia protezione freni posteriori
Hood, rear brakes cover
2x / 190.48-240.48-260.48
3352.00
Manicotto sfiato motore
Air hose, engine vent
190.48-240.48-260.48
61321189
Freni a tamburo / Drum brake
Ø = 19/30 mm
SILICONE
3108.00
4627303
Manicotto entrata acqua scambiatore
Water hose, heat exchanger inlet
190.48-240.48-260.48
3355.00
42108018
Manicotto inferiore pompa acqua
Water hose, water pump (lower)
190.48-240.48-260.48
Ø = 45 mm - L = 80 mm
Ø = 60/67 mm - L = 74 mm
292
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
www.lema-parts.it
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.48 TurboStar
240.48 TurboStar
260.48 TurboStar
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
3356.00
98420476
Manicotto entrata acqua termostato
Water hose, thermostat inlet
190.48-240.48-260.48
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
5132.00
42072226
Manicotto tubazioni acqua riscaldatore
Water hose, heater piping
190.48-240.48-260.48
WEBASTO
Ø = 43 mm
SILICONE
Ø = 18 mm
3361.00
98420478
Manicotto tubazione olio turbina
Oil hose, turbocharger piping
190.48-240.48-260.48
5366.00
61586057
98420479
Manicotto uscita aria turbina
Air hose, turbocharger outlet
190.48-240.48-260.48
Ø = 19 mm - L = 70 mm
Ø = 48 mm - L = 90 mm
SILICONE
SILICONE
3364.00
Manicotto superiore radiatore
Water hose, radiator (upper)
190.48-240.48-260.48
42106543
5389.00
42051703
Manicotto uscita aria turbina
Air hose, turbocharger air outlet
190.48-240.48-260.48
1905803
42532809
5389.10
41028589
Manicotto tubaz. aria turbina (destra)
Air hose, turbocharger pipe (right)
190.48-240.48-260.48
Ø = 60 mm
3367.00
Manicotto inferiore radiatore
Water hose, radiator (lower)
190.48-240.48-260.48
Ø = 70 mm
Ø = 60 mm - L = 530 mm
SILICONE
3793.00
42065767
Manicotto entrata aria compressore
Air hose, air compressor inlet
190.48-240.48-260.48
5395.00
Soffietto entrata aria cabina
Bellow, cab stack pipe
190.48-240.48-260.48
42040707
Ø = 25 mm - L = 150 mm
3921.00
41017736
Manicotto tubazioni olio idroguida
Oil hose, power steering piping
190.48-240.48-260.48
5691.00
42106779
Manicotto entrata aria intercooler
Air hose, intercooler inlet
190.48-240.48-260.48
Ø = 22 mm
Ø = 90 mm - L = 160 mm
SILICONE
5120.00
8123194
93156652
Manicotto entrata/uscita acqua riscaldatore
Water hose, heater inlet/outlet
2x / 190.48-240.48-260.48
5694.00
42106780
Manicotto uscita aria intercooler
Air hose, intercooler outlet
190.48-240.48-260.48
Ø = 90 mm - L = 210 mm
Ø = 18/20 mm - L = 200 mm
www.lema-parts.it
SILICONE
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
293
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.48 TurboStar
240.48 TurboStar
260.48 TurboStar
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
7820.00
41830230
Tubo tubazioni acqua riscaldatore
Water hose, heater piping
Con spirale metal. / Metal wire spiral reinf.
190.48-240.48-260.48
Ø = 20 mm
7828.00
41830231
Tubo inferiore vaschetta supplementare
Water hose, additional tank (lower)
Con spirale metal. / Metal wire spiral reinf.
190.48-240.48-260.48
Ø = 28 mm
9472.00
Serie manicotti acqua motore
Engine water hoses full set
190.48-240.48-260.48
9872.00
Serie manicotti acqua motore con
riscaldamento
Engine water and heating hoses full set
190.48-240.48-260.48
294
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
www.lema-parts.it
