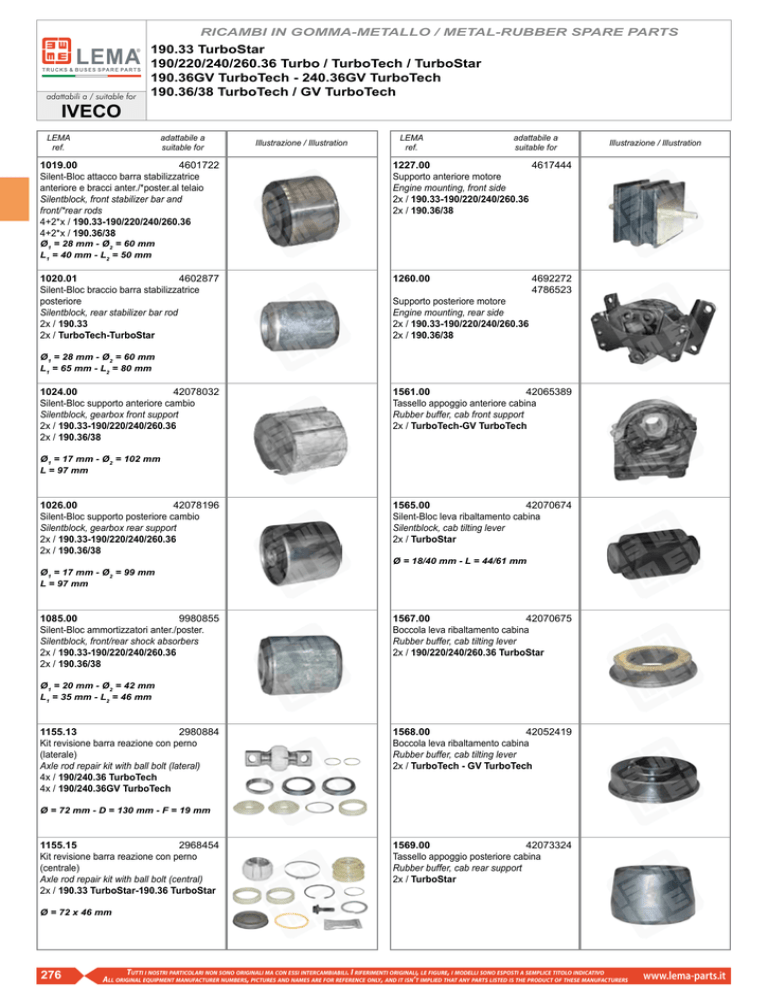

www.lema-parts.it 276 190.33 TurboStar 190/220/240/260.36 Turbo

RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
adattabili a / suitable for
190.33 TurboStar
190/220/240/260.36 Turbo / TurboTech / TurboStar
190.36GV TurboTech - 240.36GV TurboTech
190.36/38 TurboTech / GV TurboTech
IVECO
LEMA
ref.
adattabile a
suitable for
1019.00
4601722
Silent-Bloc attacco barra stabilizzatrice
anteriore e bracci anter./*poster.al telaio
Silentblock, front stabilizer bar and
front/*rear rods
4+2*x / 190.33-190/220/240/260.36
4+2*x / 190.36/38
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
1227.00
4617444
Supporto anteriore motore
Engine mounting, front side
2x / 190.33-190/220/240/260.36
2x / 190.36/38
Ø1 = 28 mm - Ø2 = 60 mm
L1 = 40 mm - L2 = 50 mm
1020.01
4602877
Silent-Bloc braccio barra stabilizzatrice
posteriore
Silentblock, rear stabilizer bar rod
2x / 190.33
2x / TurboTech-TurboStar
1260.00
4692272
4786523
Supporto posteriore motore
Engine mounting, rear side
2x / 190.33-190/220/240/260.36
2x / 190.36/38
Ø1 = 28 mm - Ø2 = 60 mm
L1 = 65 mm - L2 = 80 mm
1024.00
42078032
Silent-Bloc supporto anteriore cambio
Silentblock, gearbox front support
2x / 190.33-190/220/240/260.36
2x / 190.36/38
1561.00
42065389
Tassello appoggio anteriore cabina
Rubber buffer, cab front support
2x / TurboTech-GV TurboTech
Ø1 = 17 mm - Ø2 = 102 mm
L = 97 mm
1026.00
42078196
Silent-Bloc supporto posteriore cambio
Silentblock, gearbox rear support
2x / 190.33-190/220/240/260.36
2x / 190.36/38
1565.00
42070674
Silent-Bloc leva ribaltamento cabina
Silentblock, cab tilting lever
2x / TurboStar
Ø = 18/40 mm - L = 44/61 mm
Ø1 = 17 mm - Ø2 = 99 mm
L = 97 mm
1085.00
9980855
Silent-Bloc ammortizzatori anter./poster.
Silentblock, front/rear shock absorbers
2x / 190.33-190/220/240/260.36
2x / 190.36/38
1567.00
42070675
Boccola leva ribaltamento cabina
Rubber buffer, cab tilting lever
2x / 190/220/240/260.36 TurboStar
Ø1 = 20 mm - Ø2 = 42 mm
L1 = 35 mm - L2 = 46 mm
1155.13
2980884
Kit revisione barra reazione con perno
(laterale)
Axle rod repair kit with ball bolt (lateral)
4x / 190/240.36 TurboTech
4x / 190/240.36GV TurboTech
1568.00
42052419
Boccola leva ribaltamento cabina
Rubber buffer, cab tilting lever
2x / TurboTech - GV TurboTech
Ø = 72 mm - D = 130 mm - F = 19 mm
1155.15
2968454
Kit revisione barra reazione con perno
(centrale)
Axle rod repair kit with ball bolt (central)
2x / 190.33 TurboStar-190.36 TurboStar
1569.00
42073324
Tassello appoggio posteriore cabina
Rubber buffer, cab rear support
2x / TurboStar
Ø = 72 x 46 mm
276
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
www.lema-parts.it
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.33 TurboStar
190/220/240/260.36 Turbo / TurboTech / TurboStar
190.36GV TurboTech - 240.36GV TurboTech
190.36/38 TurboTech / GV TurboTech
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
1575.00
42073312
Gommino ammortizzatore cabina
Rubber buffer, cab shock absorber
2x / TurboStar
2318.05
8975500204/K
Gommino giunto di accoppiamento
comando pneumatico freni
Rubber seal ring, coupling head (suzie
brake)
190.36 TurboTech
1607.30
42052764
Paracolpi fogli balestre anteriori
Rubber buffer, front leaf springs
8x / 190/220/240/260.36 TurboTech
8x / 190/240/260.36 TurboStar
2536.00
4688153
Boccola barra stabilizzatrice posteriore
Rubber bush, rear stabilizer bar
2x / TurboTech-TurboStar
Sosp. rinforzate / Strengthened leaf spring
Ø = 50 mm - L = 78 mm
1649.00
4714376
Tampone sospensione pneumatica
Rubber buffer, air spring suspension
2x / 190.33-190/220/240/260.36
2x / 190.36/38
2538.00
4739171
Boccola attacco barra stabilizzatrice
posteriore
Rubber bush, rear stabilizer bar fastening
2x / 220/240.36 TurboTech
2x / 240.36 GV TurboTech
Illustrazione / Illustration
Ø = 52/63 mm - L = 70 mm
1677.00
4703402
Paracolpo balestra anteriore
Rubber bump stop, front leaf springs
Sosp. rinforzata / Strengthened suspens.
2x / TurboStar
2553.00
7984329
Cuffia copridado gancio traino
Rubber cap, trailer coupling castle nut
190.33-190/220/240/260.36
190.36/38
Paracolpo appoggio posteriore cabina
Rubber buffer, cab rear side
2x / TurboTech/Star-GV TurboTech
1678.00
4715638
Paracolpo balestre posteriori
Rubber bump stop, rear leaf springs
2x / TurboTech-TurboStar
2582.00
1903.00
Cuffia asta comando cambio
Hood, gear shift rod
TurboTech-TurboStar
2644.00
4731981
Boccola barra stabilizzatrice anteriore
Rubber bush, front stabilizer bar
2x / 190.33-190/220/240/260.36
2x / 190.36/38
4725395
Cambio / Gearbox FULLER
4691818
42065903
Gommino tirante correttore di frenata
Rubber lug, braking complem. fitting
TurboTech-TurboStar
Ø = 44 mm - L = 70 mm
POLIURETANO / POLYURETHANE
1906.00
4725239
Cuffia leva cambio
Hood, gear shift lever
2x / 190.33-190/220/240/260.36
2x / 190.36/38
2647.00
4735723
Boccola barra stabilizzatrice posteriore
Rubber bush, rear stabilizer bar
2x / TurboStar
Sosp. pneumatica / Air spring suspension
Ø = 52 mm - L = 93 mm
Vulkollan BAYER D15
www.lema-parts.it
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
277
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
adattabili a / suitable for
190.33 TurboStar
190/220/240/260.36 Turbo / TurboTech / TurboStar
190.36GV TurboTech - 240.36GV TurboTech
190.36/38 TurboTech / GV TurboTech
IVECO
LEMA
ref.
adattabile a
suitable for
2650.00
4740646
Boccola barra di torsione posteriore
Rubber bush, torsion bar
2x / 190.33-190/220/240/260.36
2x / 190.36/38
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
2842.00
42480064
Tappo ispezione freni anteriori/posteriori
Rubber plug, front/rear brakes control
16x / 190.33-190/220/240/260.36
16x / 190.36/38
Sosp. pneum. / Air spring suspension
Ø = 60 mm - L = 94 mm
POLIURETANO / POLYURETHANE
2653.00
4734043
Silentblock, barra di torsione posteriore
Silentblock, rear torsion rod
4x / 190.33-190/220/240/260.36
4x / 190.36/38
2863.00
42488736
Cuffia protezione freni posteriori
Hood, rear brakes cover
2x / 190/240.36GV TurboTech
2x / 190/220/240/260.36 TurboTech/Star
Sosp. pneum. / Air spring suspension
Freni a tamburo / Drum brake
Ø = 75 mm - D = 114 mm - F = 16 mm
2715.00
42087410
Supporto albero di trasmissione (1°T)
Propeller shaft carrier (1°T)
190.33-190/220/240/260.36
190.36/38
2866.00
42488737
Cuffia protezione freni posteriori
Hood, rear brakes cover
2x / 190/240.36GV TurboTech
2x / 190/220/240/260.36 TurboTech/Star
KLEIN (Ghisa-Cast iron)
Freni a tamburo / Drum brake
Ø = 70 mm - P = 43 mm
D = 220 mm - H = 90 mm
2719.00
42536964
42087542
Supporto albero di trasmissione
Propeller shaft carrier
190/220/240/260.36 TurboStar
190.36/38
3096.00
Manicotto sfiato motore
Air hose, engine vent
190.33 TurboStar
98425465
Ø = 20 mm
GWB (Ghisa-Cast iron)
Ø = 70/78 mm - P = 20 mm
D = 220 mm - H = 90 mm
2722.00
42536525
Supporto albero di trasmissione
Propeller shaft carrier
190/220/240/260.36 TurboTech
190.36/38
3206.00
98420260
Manicotto tubazioni acqua testata
Water hose, cylinder block piping
190.33-190/220/240/260.36
190.36/38
GLAENZER (Ghisa-Cast iron)
Ø = 60 mm - P = 20 mm
D = 220 mm - H = 90 mm
Ø = 50 mm - L = 58 mm
2728.00
42536961
Supporto albero di trasmissione (2°T)
Propeller shaft carrier (2°T)
190/220/240/260.36 TurboTech
190.36/38
3207.00
98421377
Manicotto tubazioni acqua testata
Water hose, cylinder block piping
190.33-190/220/240/260.36
190.36/38
KLEIN (Ghisa-Cast iron)
Ø = 60 mm - P = 37 mm
D = 220 mm - H = 90 mm
Ø = 50 mm - L = 58 mm
2839.00
42493640
Tappo ispezione freni anteriori/posteriori
Rubber plug, front/rear brakes control
24x / 190.33-190/220/240/260.36
24x / 190.36/38
3208.00
4617320
Manicotto dal compressore al condotto
aspirazione
Air hose, from air compressor to intake pipe
190.33 TurboStar
SILICONE
Ø = 25 mm - L = 90 mm
278
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
www.lema-parts.it
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.33 TurboStar
190/220/240/260.36 Turbo / TurboTech / TurboStar
190.36GV TurboTech - 240.36GV TurboTech
190.36/38 TurboTech / GV TurboTech
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
3238.00
4787288
61318022
Manicotto entrata acqua scambiatore
Water hose, heat exchanger inlet
190.33-190/220/240/260.36
190.36/38
3352.00
61321189
Manicotto tubazione sfiato motore
Air hose, engine vent pipe
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
190.36/38
Ø = 45 mm - L = 65 mm
Ø = 19/30 mm
Illustrazione / Illustration
SILICONE
3277.00
4613592
Manicotto entrata acqua scambiatore di
calore (2°T)
Water hose, heat exchanger inlet (2°T)
190.33 TurboStar
3353.00
10143886
Manicotto tubazioni acqua radiatore
Water hose, radiator piping
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
190.36/38
Ø = 45 mm - L = 70 mm
Tela di vetro / Glass fiber cover
Ø = 60 mm - L = 100 mm
3278.00
4863960
98420477
Manicotto tubazioni acqua testata (2°T)
Water hose, cylinder block piping (2°T)
190.33 TurboStar
3358.00
4865233
Manicotto entrata aria compressore (2°T)
Air hose, air compressor inlet (2°T)
190.33-190/220/240/260.36
190.36/38
Ø = 45 mm - L = 70 mm
Ø = 25 mm - L = 80 mm
SILICONE
3332.00
98447353
Manicotto tubazioni acqua compressore
Water hose, air compressor piping
190.33 TurboStar
Ø = 12 mm - L = 200 mm
3763.00
98421381
Manicotto uscita acqua scambiatore di
calore (1°T)
Water hose, heat exchanger outlet (1°T)
190.33-190/220/240/260.36
190.36/38
Ø = 48 mm - L = 70 mm
3333.00
98447353/K
Manicotto tubazioni acqua compressore
Water hose, air compressor piping
190.33 TurboStar
3766.00
4865231
Manicotto tubazione olio turbina
Oil hose, turbocharger piping
TurboTech-TurboStar
Ø = 11 mm - L = 200 mm
Ø = 28 mm - L = 80 mm
SILICONE
SILICONE
3350.00
4690924
Manicotto tubazione entrata olio motore
Oil hose, engine oil filling pipe
TurboTech
3769.00
42070168
Manicotto superiore radiatore
Water hose, radiator (upper)
190.33-190/220/240/260.36
190.36/38
Ø = 33 mm
Ø = 60 mm
3351.00
4865232
Manicotto sfiato motore
Air hose, engine vent
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
190.36/38
3772.00
Manicotto inferiore radiatore
Water hose, radiator (lower)
190.33 TurboStar
42043929
Ø = 60 mm
Ø = 20/30 mm
www.lema-parts.it
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
279
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
adattabili a / suitable for
190.33 TurboStar
190/220/240/260.36 Turbo / TurboTech / TurboStar
190.36GV TurboTech - 240.36GV TurboTech
190.36/38 TurboTech / GV TurboTech
IVECO
LEMA
ref.
adattabile a
suitable for
3784.00
98447313
Manicotto entrata acqua termostato
Water hose, thermostat inlet
190.33 TurboStar
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
3811.00
42202073
Manicotto tubazioni acqua radiatore
Water hose, radiator piping
190/220/240/260.36 TurboStar
190.36/38
Ø = 38/45 mm - L = 80 mm
Ø = 28 mm
3787.00
42072818
Manicotto tubazione entrata olio motore
Oil hose, engine oil filling pipe
TurboStar
3988.00
4863962
Manicotto uscita acqua scambiat. (2°T)
Water hose, heat exchang. outlet (2°T)
190/220/240/260 TurboTech
190.36 TurboStar
Ø = 33 mm
Ø = 48 mm - L = 80 mm
SILICONE
3790.00
42072819
Manicotto tubazione entrata olio motore
Oil hose, engine oil filling pipe
TurboStar
5042.00
4679593
Manicotto rubinetto acqua riscaldam.
Water hose, heating water shut-off cock
TurboTech-GV TurboTech
Ø = 33 mm
Ø = 19 mm
3793.00
42065767
Manicotto entrata aria compress. (1°T)
Air compressor inlet (1°T)
TurboStar
5047.00
42345767
Manicotto uscita acqua riscaldatore
Water hose, heater outlet
TurboTech-GV TurboTech
Ø = 25 mm - L = 150 mm
Ø = 18 mm
3796.00
98447355
Manicotto tubaz. acqua compressore
Water hose, air compressor piping
190.33 TurboStar
5120.00
8123194
93156652
Manicotto entrata/uscita acqua riscaldatore
Water hose, heater inlet/outlet
2x / TurboStar
Ø = 6 mm - L = 70 mm
SILICONE
Ø = 18/20 mm - L = 200 mm
3805.00
42089470
Manicotto inferiore radiatore
Water hose, radiator (lower)
190/220/240/260.36 TurboTech
190.36/38 GV TurboTech
190/220/240/260.36 TurboStar
5129.00
Manicotto elettrovalvola
Water hose, electrovalve
TurboStar
42105971
Ø = 20 mm
Ø = 60 mm
3808.00
42089471
Manicotto tubi vaschetta supplementare
Water hose, additional tank piping
190/220/240/260.36 TurboTech
190.36-190.36/38 GV TurboTech
5132.00
42072226
Manicotto tubazione acqua riscaldatore
Water hose, heater pipes
190.33 TurboStar
190/220/240/260.36 TurboTech
190.36/38 TurboTech
Ø = 28 mm
WEBASTO
Ø = 18 mm
280
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
www.lema-parts.it
RICAMBI IN GOMMA-METALLO / METAL-RUBBER SPARE PARTS
190.33 TurboStar
190/220/240/260.36 Turbo / TurboTech / TurboStar
190.36GV TurboTech - 240.36GV TurboTech
190.36/38 TurboTech / GV TurboTech
adattabili a / suitable for
IVECO
LEMA
ref.
adattabile a
suitable for
5395.00
42040707
Soffietto entrata aria cabina
Bellow, cab stack pipe
190.33 TurboStar
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
Illustrazione / Illustration
LEMA
ref.
adattabile a
suitable for
Illustrazione / Illustration
5685.00
42107725
Manicotto entrata/uscita aria intercooler
Air hose, intercooler inlet/outlet
2x / 190/240.36GV TurboTech
Ø = 90 mm - L = 210 mm
SILICONE
5600.00
41025819
Manicotto tubazione entrata aria turbina
Air hose, turbocharger inlet piping
190/240.36GV TurboTech
7820.00
41830230
Tubo tubazioni acqua riscaldatore
Water hose, heater piping
Con spirale metal. / Metal wire spiral reinf.
TurboStar
Ø = 88 mm - L = 75 mm
SILICONE
Ø = 20 mm
5619.00
4532938
Manicotto tubo entrata aria turbina (1°T)
Air hose, turbocharger inlet (1°T)
190.33 TurboStar
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
7828.00
41830231
Tubo collegam. vaschetta supplementare
Additional tank connecting hose
Ø = 90 mm - L = 110 mm
Ø = 28 mm
5628.00
4865230
Manicotto tubazione aria turbina
Air hose, turbocharger piping
190.33 TurboStar
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboTechStar
9475.00
Serie manicotti acqua motore
Engine water hoses full set
190.33 TurboStar
Con spirale metal. / Metal wire spiral reinf.
190.33-190/220/240/260.36
190.36/38
Ø = 80 mm - L = 80 mm
SILICONE
5670.00
42070016
Manicotto tubazioni aria intercooler
Air hose, intercooler piping
190.33 TurboStar
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
9478.00
Serie manicotti acqua motore
Engine water hoses full set
190/220/240/260.36 Turbo
190/220/240/260.36 TurboTech/Star
190/240.36GV TurboTech
190.36/38 TurboTech-GV TurboTech/Star
Ø = 90 mm - L = 100 mm
SILICONE
5676.00
42088612
Manicotto entrata aria intercooler
Air hose, intercooler inlet
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
9875.00
Serie manicotti acqua motore con
riscaldamento
Engine water and heating hoses full set
190.33 TurboStar
Ø = 90 mm - L = 140 mm
SILICONE
5679.00
42088622
Manicotto uscita aria intercooler
Air hose, intercooler outlet
190/220/240/260.36 TurboTech
190/220/240/260.36 TurboStar
Ø = 85/90 mm - L = 210 mm
SILICONE
www.lema-parts.it
9878.00
Serie manicotti acqua motore con
riscaldamento
Engine water and heating hoses full set
190/220/240/260.36 Turbo
190/220/240/260.36 TurboTech/Star
190/240.36GV TurboTech
190.36/38 TurboTech-GV TurboTech/Star
Tutti i nostri particolari non sono originali ma con essi intercambiabili. I riferimenti originali, le figure, i modelli sono esposti a semplice titolo indicativo
All original equipment manufacturer numbers, pictures and names are for reference only, and it isn’t implied that any parts listed is the product of these manufacturers
281
