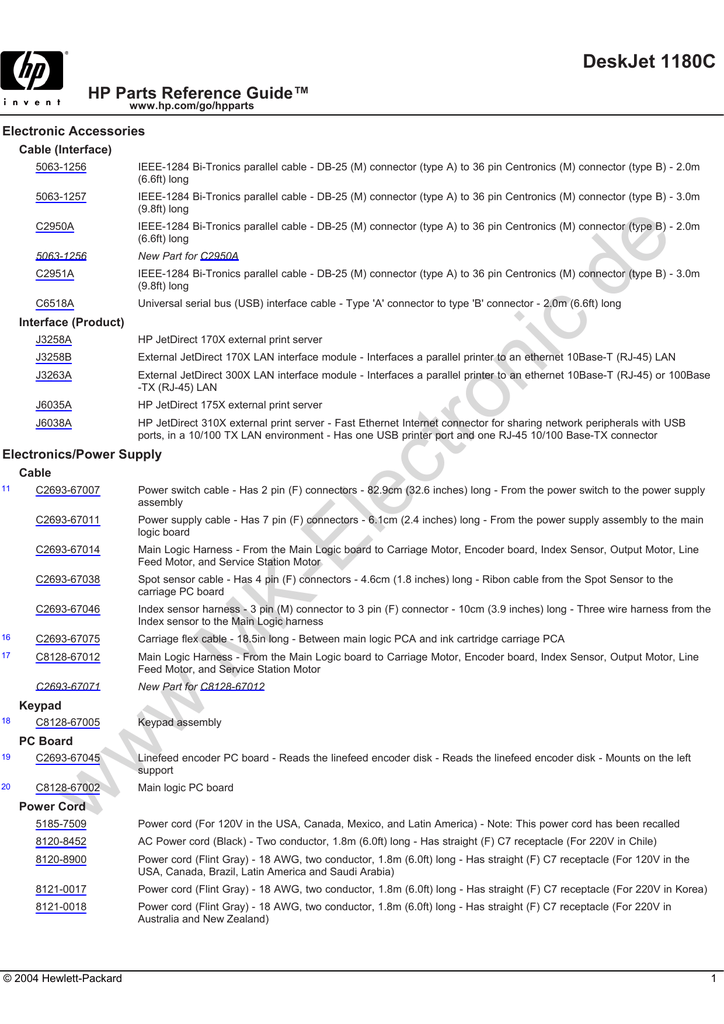

DeskJet 1180C
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronic Accessories
Cable (Interface)
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1257
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2950A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1256
New Part for C2950A
C2951A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C6518A
Universal serial bus (USB) interface cable - Type 'A' connector to type 'B' connector - 2.0m (6.6ft) long
de
5063-1256
J3258A
HP JetDirect 170X external print server
External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN
J3263A
External JetDirect 300X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) or 100Base
-TX (RJ-45) LAN
J6035A
HP JetDirect 175X external print server
J6038A
HP JetDirect 310X external print server - Fast Ethernet Internet connector for sharing network peripherals with USB
ports, in a 10/100 TX LAN environment - Has one USB printer port and one RJ-45 10/100 Base-TX connector
Cable
ct
ro
n
J3258B
Electronics/Power Supply
11
ic
Interface (Product)
Power switch cable - Has 2 pin (F) connectors - 82.9cm (32.6 inches) long - From the power switch to the power supply
assembly
C2693-67011
Power supply cable - Has 7 pin (F) connectors - 6.1cm (2.4 inches) long - From the power supply assembly to the main
logic board
C2693-67014
Main Logic Harness - From the Main Logic board to Carriage Motor, Encoder board, Index Sensor, Output Motor, Line
Feed Motor, and Service Station Motor
C2693-67038
Spot sensor cable - Has 4 pin (F) connectors - 4.6cm (1.8 inches) long - Ribon cable from the Spot Sensor to the
carriage PC board
C2693-67046
Index sensor harness - 3 pin (M) connector to 3 pin (F) connector - 10cm (3.9 inches) long - Three wire harness from the
Index sensor to the Main Logic harness
16
C2693-67075
Carriage flex cable - 18.5in long - Between main logic PCA and ink cartridge carriage PCA
17
C8128-67012
Main Logic Harness - From the Main Logic board to Carriage Motor, Encoder board, Index Sensor, Output Motor, Line
Feed Motor, and Service Station Motor
C2693-67071
New Part for C8128-67012
C8128-67005
C2693-67045
w
20
K-
M
Keypad assembly
w
PC Board
19
w
Keypad
18
El
e
C2693-67007
C8128-67002
Linefeed encoder PC board - Reads the linefeed encoder disk - Reads the linefeed encoder disk - Mounts on the left
support
Main logic PC board
Power Cord
5185-7509
Power cord (For 120V in the USA, Canada, Mexico, and Latin America) - Note: This power cord has been recalled
8120-8452
AC Power cord (Black) - Two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in Chile)
8120-8900
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 120V in the
USA, Canada, Brazil, Latin America and Saudi Arabia)
8121-0017
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in Korea)
8121-0018
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in
Australia and New Zealand)
© 2004 Hewlett-Packard
1
DeskJet 1180C
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronics/Power Supply
Power Cord
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in
Argentina)
8121-0020
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in South
Africa)
8121-0021
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 100V in Japan)
8121-0022
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 240V in the
UK)
8121-0023
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in
Europe, Asia Pacific, Germany, Spain, France, Netherlands, Switzerland, Italy, and Portugal)
8121-0024
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in China)
8121-0025
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 240V in India)
8121-0026
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 240V in Hong
Kong, Singapore, and Malaysia)
ct
ro
n
ic
de
8121-0019
Power Supply
34
C2693-67012
Power supply PC board - 100-240VAC input, 50/60Hz, 1.0A, 90 watts - 18VDC output (2.2A) and 32VDC output (0.64A),
60 watts max
External Case Parts
Cover
C8128-67003
Left side end cap - Covers the left side of the printer
36
C8128-67004
Right side end cap - Covers the right side of the printer
37
C8128-67013
Rail cover - Mounts over the starwheel assembly
El
e
35
Door
38
C8128-67007
Rear cleanout door assembly - Paper jam cleanout door
39
C8128-67016
Top/front access door assembly - Print cartridge access door - Includes the access door and the main back panel
C8128-67010
K-
Grip/Handle
40
Grip/handle - Dark gray plastic on lower left and right side - Non-slip surface on each side for maneuvering printer
Other Accessories
Cartridge
Black print cartridge (High capacity) - Prints approximately 840 pages based on 5% density on a 8 inch by 10 inch print
area (for USA)
51645AE
Black print cartridge (high capacity) - Prints approximately 840 pages based on 5% density on a 8 inch by 10 inch print
area (for Europe)
51645G
Black print cartridge (economy) - Prints approximately 415 pages based on 5% density on a 8 inch by 10 inch print area
(for USA)
w
Tri-color ink large print cartridge - Prints approximately 970 pages based on 13.5% total density (4.5% for each color) on
a 8 inch by 10 inch print area (for Europe)
w
C6578AE
M
51645A
Other Internal Parts
w
Base
45
C2693-67028
Base plate assembly - Metal base plate that supports the printer
46
C2693-67030
Rear access cleanout base assembly - Includes the base, kicker spring, rear roller springs, cleanout base rollers, and
the pick separator assembly
Cover
C2693-67051
ESD cover - ESD cover for the spot sensor
Insulator
C2693-67013
© 2004 Hewlett-Packard
Power supply insulator - Black plastic shield - Attaches to the backbone assembly
2
DeskJet 1180C
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Internal Parts
Kit
49
C2693-67053
Low usage kit - Inludes bearings, springs, rollers, rubber feet, rod mounts, and ferrite clips
Support
50
C2693-67049
Right support assembly - Supports the right side of the print mechanism and the service station assembly
51
C2693-67072
Left support assembly - Supports the left side of the print mechanism - Includes the index sensor and sensor harness
de
Paper Tray Parts
Extender
C8128-67006
Tray extension assembly (Stopper) - Dark gray plastic tray with a paper stop that slides under the input tray - Extends to
accomodate different media lenths
C2693-67034
ic
Guide
106
Extender guides - Plastic pieces that guide the extender - Mounts to the bottom of the metal base plate
Tray
C2693-67002
Paper output tray - Has a media width adjuster and a smoked plastic sliding extension for longer paper
108
C2693-67019
Paper input tray - Includes width adjuster
Paper and Other Media
Film (Transparency)
ct
ro
n
107
Premium InkJet transparency film - A size (8.5 x 11-inches) - 20 sheets per package
C3832A
Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package
C3834A
Premium InkJet transparency film - A size (8.5 x 11-inches) - 50 sheets per package
C3835A
Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per package
C6051A
Premium InkJet rapid-dry tranparencies - A size (8.5 x 11-inches) - 50 sheets per package
NO LONGER SUPPLIED
C6053A
Premium InkJet rapid-dry tranparencies - A4 size (21.0cm x 29.7cm) - 50 sheets per package
NO LONGER SUPPLIED
El
e
C3828A
C6587AN
K-
Greeting Card Kit
Printable Expressions all occasions card kit - Includes 20 greeting cards and envelopes, and a CD-ROM with 24 original
pieces of art
NO LONGER SUPPLIED
M
Iron-On Transfers
C6049A
Iron-on T-shirt transfers - A size (8.5 x 11-inches) - 10 sheets per package
C6050A
Iron-on T-shirt transfers - A4 size (21.0cm x 29.7cm) - 10 sheets per package
C1812A
C6042A
Greeting card paper pack (White) - A4 size (21.0cm x 29.7cm) - Includes 20 sheets and 20 envelopes
Greeting card paper pack (White) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes
w
C6828A
Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes
w
Paper
Paper (Banner)
Banner paper - A size (8.5 x 11-inches) - 24 lb - Perforated for easy separation - 100 sheets per pack
C1821A
Banner paper - A4 size (21.0cm x 29.7cm) - Perforated for easy separation - 100 sheets per pack
w
C1820A
Paper (Glossy)
C3833A
Premium glossy InkJet paper - A size (8.5 x 11-inches) - 10 sheets per package
C6044A
Glossy greeting cards - A size (8.5 x 11-inches) - 10 scored glossy cards and envelopes
C6045A
Glossy greeting cards - A4 size (21.0cm x 29.7cm) - 10 scored glossy cards and envelopes
C6817A
Professional glossy InkJet brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches) - 50 sheets per box
C6818A
Professional glossy InkJet brochure and flyer paper - A4 size (21.0cm x 29.7cm) - Glossy on both sides - 50 sheets per
box
C6820A
Professional glossy InkJet brochure and flyer paper - Glossy on both sides - B size (11 x 17-inches) - 50 sheets per box
© 2004 Hewlett-Packard
3
DeskJet 1180C
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Paper (Glossy)
C6821A
Professional glossy InkJet brochure and flyer paper - A3 size (29.7cm x 42.0cm) - Glossy on both sides - 50 sheets per
box
C7020A
Scored tri-fold glossy brochure paper - B size (11 x 17-inches)
Paper (InkJet Photo)
Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package
C7007A
Photo quality InkJet paper - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets per package
Paper (InkJet)
51634Y
InkJet non-glossy LX paper - A size (8.5 x 11-inches) - 200 sheets per package
de
C6983A
InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
C1824A
Bright white InkJet paper - A size (8.5 x 11-inches) - 500 sheets per package
C1825A
Bright white InkJet paper - A4 size (21.0cm x 29.7cm) - 500 sheets per package
ic
51634Z
Premium InkJet heavyweight paper - A size (8.5 x 11-inches) - 15 sheets per package
C1853A
Premium InkJet heavyweight paper - A4 size (21.0cm x 29.7cm) - Coated on both sides - 100 sheets per package
C1855A
Premium InkJet paper - B size (11 x 17-inches) - 100 sheets per package
ct
ro
n
C1852A
C1856A
Premium InkJet paper - A3 size (29.7cm x 42.0cm) - 100 sheets
C1857A
Bright white InkJet paper - B size (11 x 17-inches) - 200 sheets per package
C1858A
Bright white InkJet paper - A3 size (29.7cm x 42.0cm) - 200 sheets per package
Paper (Matte)
Professional and flyer paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
C7018A
Matte greeting cards (White) - Half fold - A size (8.5 x 11-inches)
El
e
C6955A
Paper (Photo)
Photo paper - A size (8.5 x 11-inches) - 20 sheets per package
C6039A
Premium glossy photo paper (Fast dry time) - A size (8.5 x 11-inches) - 15 sheets per package
C6040A
Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 15 sheets per package (Europe, Brazil, and Argentina)
C6043A
Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 15 sheets per package (Japan)
C6058A
Premium photographic paper - B size (11 x 17-inches) - 20 sheets
C6059A
Premium photographic paper - A3 size (29.7cm x 42.0cm) - 20 sheets
C6831A
Premium plus glossy InkJet photographic paper - A size (8.5 x 11-inches) - 20 sheets per package
C6832A
Premium plus glossy InkJet photographic paper - A4 size (21.0cm x 29.7cm) - 20 sheets per package
C6944A
Premium plus glossy InkJet photographic paper - 10.2cm (4in) x 15.2cm (6in) - 20 sheets per package
C6950A
Premium Plus matte inkjet photographic paper - A size (8.5 x 11-inches) - 20 sheets per package
M
Premium plus matte InkJet photographic paper - A4 size (21.0cm x 29.7cm) - 20 sheets per package
Premium glossy photo paper (fast dry time) - A size (8.5 x 11-inches) - 50 sheets per package
w
C6979A
w
C6951A
K-
C1846A
C7013A
Colorfast photo paper - A size (8.5 x 11-inches) - 20 sheets per package
Q1934A
Premium Plus Photo Matte paper - A4 size (21.0cm x 29.7cm) - 20 sheets per package
w
Paper (Textured)
C7019A
Textured greeting card - White half fold - A size (8.5 inches x 11 inches)
Stickers
C6822A
Round re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) round stickers with 3M 'Post-it' adhesive - A size (8.5
x 11-inches) - 10 sheets per package with nine stickers per sheet
C6823A
Square re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) square stickers with 3M 'Post-it' adhesive - A size
(8.5 x 11-inches) - 10 sheets per package with nine stickers per sheet
© 2004 Hewlett-Packard
4
DeskJet 1180C
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism Parts
Absorber
C2693-67042
Service station absorber (sponge) - Soaks up used ink during cartridge cleaning
Backbone
110
C2693-67048
BackBone - Large metal item where the main logic PCA, power supply, and the carriage drive motor are mounted
Belt
C2693-67016
Carriage drive belt - Moves printhead side to side
112
C2693-67025
Output belt - Drives the output roller - Between the output roller and the drive roller gears
de
111
Carriage
113
C2693-67035
Ink cartridge carriage assembly - Includes only the plastic frame
ic
Encoder
C2693-67015
Encoder strip (Clear strip with position marks) - Used by the sensor in the carriage assembly to determine position
115
C2693-67031
Linefeed encoder disk - Mounted on the drive roller assembly shaft
Guide
ct
ro
n
114
116
C2693-67023
Upper paper guide - Guides media through paper path
117
C2693-67050
Linefeed encoder guide - Guides the linefeed encoder disk - Attaches to the linefeed encoder PC board
Motor
118
120
C2693-67017
Carriage drive motor assembly
C2693-67040
Service station motor - Provides power to rotate service station assembly parts
C2693-67044
Output motor - Powers part of the output mechanism
El
e
Pivot
C2693-67021
Pivot - Large plastic item installed over the feed roller assembly
C2693-67022
Pivot Guide - 'C' shaped plastic pieces that guides the Pivot on the Drive Roller
Roller
C2693-67018
Pickup roller assembly - Shaft with 1 roller - Picks paper from paper input tray
124
C2693-67020
Drive roller assembly - Includes shaft with 6 rollers, pivot assembly, and gears - Does not include plastic encoder disc
125
C2693-67024
Output roller assembly - Roller assembly at the front of the printer (where the paper comes out) - Includes shaft with 10
rollers and surrounding internal and external plastic
K-
123
M
Sensor
126
C2693-67037
Spot sensor assembly - Mounts on the side of the carriage
C2693-67047
Index sensor - Reads the index slot from the large gear on the drive roller
Separator
Paper pick separator - Separates the top piece of paper from the rest of the stack during the pick process
w
C2693-67032
Service Station
C2693-67039
Complete service station assembly - Includes the service station motor, wiper assembly, and sponge
w
129
Starwheel
C8128-67011
Starwheel assembly - Includes starwheel chassis assembly and starwheels
C2693-67027
New Part for C8128-67011
w
130
Wiper
C2693-67041
© 2004 Hewlett-Packard
Wiper - Cleans ink and debris from print nozzles
5
DeskJet 1180C
HP Parts Reference Guide™
www.hp.com/go/hpparts
16
de
Exploded View
_
ic
/
39
|
38
|
34
/
113
|
126
/
130
125
|
114
|
111
El
e
| 115 _
11
/
124
_
K-
/
106
_
|
46
_
117
ct
ro
n
|
37
|
19
M
51
_
_
\
17
\
116
_
\
46
w
\
50
_
w
w
/
11
© 2004 Hewlett-Packard
/
110
49
49
/
120
/
40
|
20
/
123
/
112
|
35
118
/
45
/
49
_
49
106
/
129
40
\
18
_
_
36
|
108
107
_
6
DeskJet 1180C
HP Parts Reference Guide™
www.hp.com/go/hpparts
HP Parts Reference Guide
http://www.hp.com/go/parts
de
HP PartSurfer
http://partsurfer.hp.com
HP Parts Ordering Information
ic
http://www.hp.com/go/hpparts
HP Parts Questions/Comments
w
w
w
M
K-
El
e
ct
ro
n
http://partsurfer.hp.com/contactus.htm
