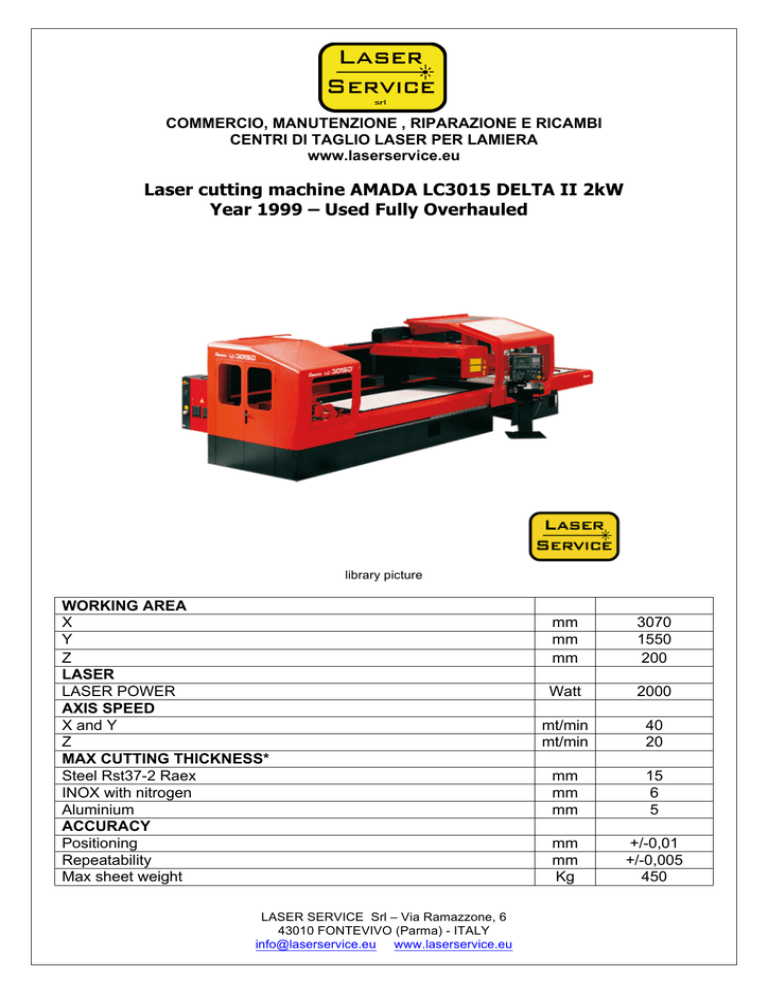

Laser cutting machine AMADA LC3015 DELTA II 2kW Year 1999

 COMMERCIO, MANUTENZIONE , RIPARAZIONE E RICAMBI
CENTRI DI TAGLIO LASER PER LAMIERA
www.laserservice.eu
Laser cutting machine AMADA LC3015 DELTA II 2kW
Year 1999 – Used Fully Overhauled
library picture
WORKING AREA
X
Y
Z
LASER
LASER POWER
AXIS SPEED
X and Y
Z
MAX CUTTING THICKNESS*
Steel Rst37-2 Raex
INOX with nitrogen
Aluminium
ACCURACY
Positioning
Repeatability
Max sheet weight
LASER SERVICE Srl – Via Ramazzone, 6
43010 FONTEVIVO (Parma) - ITALY
[email protected] www.laserservice.eu mm
mm
mm
3070
1550
200
Watt
2000
mt/min
mt/min
40
20
mm
mm
mm
15
6
5
mm
mm
Kg
+/-0,01
+/-0,005
450
COMMERCIO, MANUTENZIONE , RIPARAZIONE E RICAMBI
CENTRI DI TAGLIO LASER PER LAMIERA
www.laserservice.eu
CUTTING THICKNESS – recommendations about material
Accuracy of the part achieved depends on the part type, the preatreatment and type of
sheet, gas purity, as well as on several variables. values shown are given by constructor,
and according to standard VDI/DGQ 3441, the measuring length is 1mt.(39,37”)
Important: reflective, rayed, imbued materials CANNOT BE cut in the same quality of
reference materials.
They can result in rough cut, burnt cut or cut with burrs.
FEATURES
NUMERIC CONTROL FANUC FS-16LB
LASER GENERATOR FANUC C-2000C
PREMIXED GAS He, N2, CO2 – 10 bar
COMPRESSED AIR 6 BAR
SYSTEM CHANGE PALLET
COOLING SYSTEM CHILER
HEAD PROTECTION ANTI SHOCK
SUCTION SYSTEM SMOKE
SAFETY BARRIERS MULTIBEAM
LASER SERVICE Srl – Via Ramazzone, 6
43010 FONTEVIVO (Parma) - ITALY
[email protected] www.laserservice.eu
