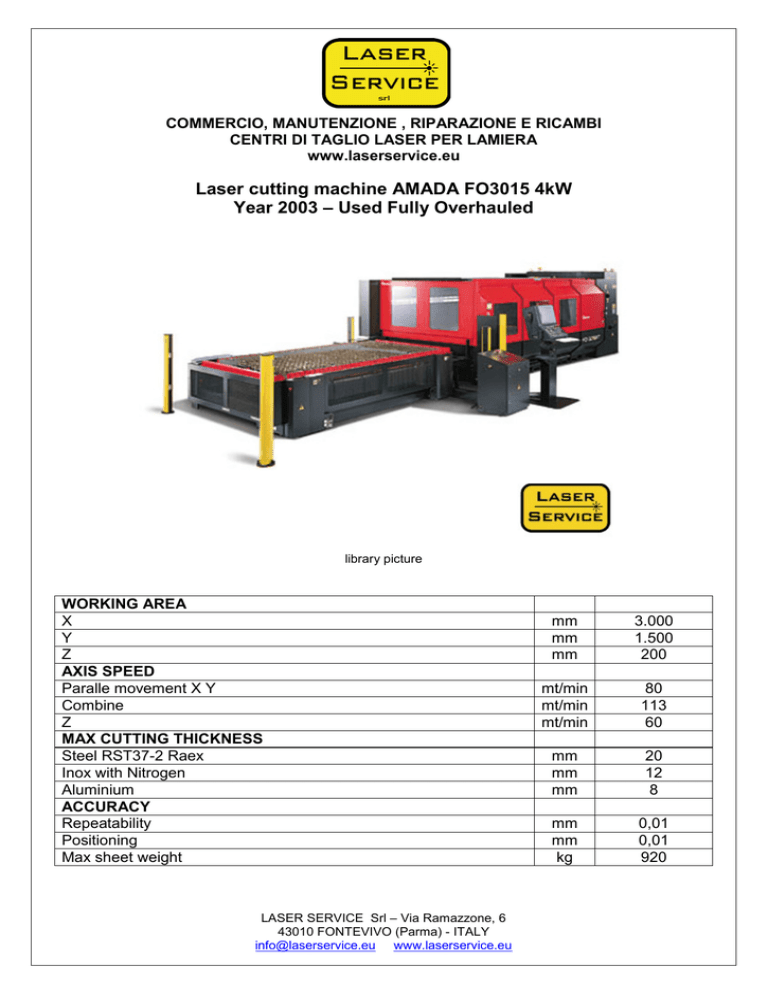

Laser cutting machine AMADA FO3015 4kW Year 2003 – Used Fully

COMMERCIO, MANUTENZIONE , RIPARAZIONE E RICAMBI
CENTRI DI TAGLIO LASER PER LAMIERA
www.laserservice.eu
Laser cutting machine AMADA FO3015 4kW
Year 2003 – Used Fully Overhauled
library picture
WORKING AREA
X
Y
Z
AXIS SPEED
Paralle movement X Y
Combine
Z
MAX CUTTING THICKNESS
Steel RST37-2 Raex
Inox with Nitrogen
Aluminium
ACCURACY
Repeatability
Positioning
Max sheet weight
LASER SERVICE Srl – Via Ramazzone, 6
43010 FONTEVIVO (Parma) - ITALY
[email protected] www.laserservice.eu
mm
mm
mm
3.000
1.500
200
mt/min
mt/min
mt/min
80
113
60
mm
mm
mm
20
12
8
mm
mm
kg
0,01
0,01
920
COMMERCIO, MANUTENZIONE , RIPARAZIONE E RICAMBI
CENTRI DI TAGLIO LASER PER LAMIERA
www.laserservice.eu
* CUTTING THIKNESS – Material Recommendation
The accuracy of the piece that is obtained depends on the type of work piece, pretreatment and the sheet type, the gas purity , so 'as other variables. The values shown are
specified by the manufacturer, and the reference sample has the size of 1m x 1m.
IMPORTANT: shiny materials, irradiated, impregnated can be NOT cut with the quality 'of
the reference materials. The problems caused by the material type during the flame cutting
of structural steels, fine-grained steel and other alloy steels are in a rough cut and burned
or full of drool.
FEATURES
NUMERIC CONTROL FANUC 160I
LASER GENERATOR FANUC MODEL AF4000E
SYSTEM CHANGE PALLET
HEAD CUTTING WITH 5” LENS
HEAD CUTTING WITH 7.5” LENS
NC FOCUS
CUTTING HEAD WATER
SENSOR CAPACITIVE
HIGH PRESSURE HEAD CUT
HEAD PROTECTION ANTI SHOCK
SUCTION SYSTEM SMOKE
COOLING SYSTEM CHILLER
