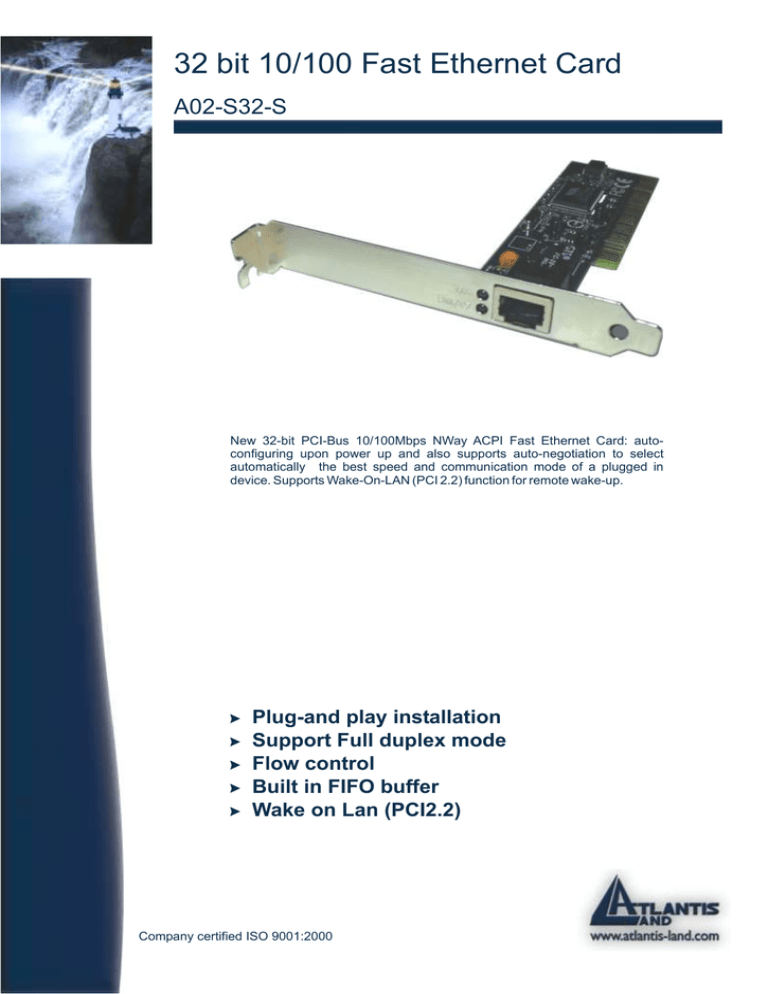

32 bit 10/100 Fast Ethernet Card
A02-S32-S
New 32-bit PCI-Bus 10/100Mbps NWay ACPI Fast Ethernet Card: autoconfiguring upon power up and also supports auto-negotiation to select
automatically the best speed and communication mode of a plugged in
device. Supports Wake-On-LAN (PCI 2.2) function for remote wake-up.
?
?
?
?
?
Plug-and play installation
Support Full duplex mode
Flow control
Built in FIFO buffer
Wake on Lan (PCI2.2)
Company certified ISO 9001:2000
32 bit 10/100 Fast Ethernet Card
A02-S32-S
Technical Features
- Compliant to IEEE 802.3, 10BASE-T standard
- Complaint to IEEE 802.3u 100BASE-TX standard
- Compliant to IEEE ANSI/802.3 NWay Auto-negotiation standard
- Supports Full Duplex Flow Control (IEEE 802.3x)
- Chipset Via Rhine III 6105L
- Compliant to PCI 2.1, 2.2 standards
- Compliant to PC99 standard
- Supports Wake-On-LAN (PCI 2.2) function for remote wake-up (AMD Magic Packet, LinkChg
and Microsoft wake-up frame)
- Supports 4 Wake-On-LAN (WOL) signals (active high, active low, positive pulse, and
negative pulse)
- Supports ACPI, PCI power management
- Half/Full duplex capability
- Built-in FIFO buffers reduce overhead of memory transfers
- Two LED indicators: Link, Activity
- Driver for Win 95/98/ME/NT4/2000/XP, Netware and Linux
Standard
ü
ü
ü
ü
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 Auto-negotiation
IEEE 802.3x Flow Control
Network Media
ü
Ethernet: 2 pair UTP Cat. 3, 4, 5 (up to 100M)
ü
Fast Ethernet: 2 pair UTP Cat. 5 (up to 100M)
Product
Product Code
EAN Code
32-bit Fast Ethernet Card
A02-S32-S
8026974010069
3 YEARS "ON SITE" WARRANTY!
The Atlantis Land products are guaranteed ONSITE for 3 years. Atlantis Land s.p.a will substitute the faulty product
with a new one cost free. The warranty is free, we only require you to register on the web site www.atlantis-land.com
(in the section Supp./Warranty) within 30 days of the purchase date. Further details are available on the web site
