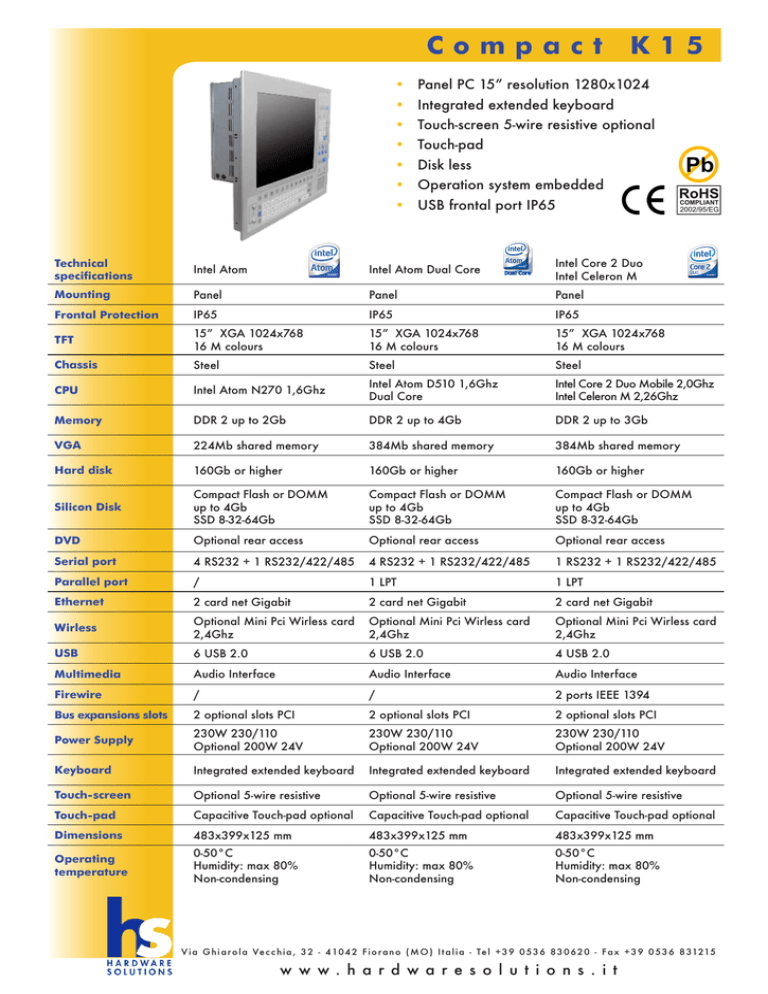

Compact K15 - Hardware Solutions srl

Compact
K15
• Panel PC 15” resolution 1280x1024
• Integrated extended keyboard
• Touch-screen 5-wire resistive optional
• Touch-pad
• Disk less
• Operation system embedded
• USB frontal port IP65
Technical
specifications
Intel Atom
Intel Atom Dual Core
Intel Core 2 Duo
Intel Celeron M
Mounting
Panel
Panel
Panel
Frontal Protection
IP65
IP65
IP65
TFT
15” XGA 1024x768
16 M colours
15” XGA 1024x768
16 M colours
15” XGA 1024x768
16 M colours
Chassis
Steel
Steel
Steel
CPU
Intel Atom N270 1,6Ghz
Intel Atom D510 1,6Ghz
Dual Core
Intel Core 2 Duo Mobile 2,0Ghz
Intel Celeron M 2,26Ghz
Memory
DDR 2 up to 2Gb
DDR 2 up to 4Gb
DDR 2 up to 3Gb
VGA
224Mb shared memory
384Mb shared memory
384Mb shared memory
Hard disk
160Gb or higher
160Gb or higher
160Gb or higher
Silicon Disk
Compact Flash or DOMM
up to 4Gb
SSD 8-32-64Gb
Compact Flash or DOMM
up to 4Gb
SSD 8-32-64Gb
Compact Flash or DOMM
up to 4Gb
SSD 8-32-64Gb
DVD
Optional rear access
Optional rear access
Optional rear access
Serial port
4 RS232 + 1 RS232/422/485
4 RS232 + 1 RS232/422/485
1 RS232 + 1 RS232/422/485
Parallel port
/
1 LPT
1 LPT
Ethernet
2 card net Gigabit
2 card net Gigabit
2 card net Gigabit
Wirless
Optional Mini Pci Wirless card
2,4Ghz
Optional Mini Pci Wirless card
2,4Ghz
Optional Mini Pci Wirless card
2,4Ghz
USB
6 USB 2.0
6 USB 2.0
4 USB 2.0
Multimedia
Audio Interface
Audio Interface
Audio Interface
Firewire
/
/
2 ports IEEE 1394
Bus expansions slots
2 optional slots PCI
2 optional slots PCI
2 optional slots PCI
Power Supply
230W 230/110
Optional 200W 24V
230W 230/110
Optional 200W 24V
230W 230/110
Optional 200W 24V
Keyboard
Integrated extended keyboard
Integrated extended keyboard
Integrated extended keyboard
Touch-screen
Optional 5-wire resistive
Optional 5-wire resistive
Optional 5-wire resistive
Touch-pad
Capacitive Touch-pad optional
Capacitive Touch-pad optional
Capacitive Touch-pad optional
Dimensions
483x399x125 mm
483x399x125 mm
483x399x125 mm
Operating
temperature
0-50°C
Humidity: max 80%
Non-condensing
0-50°C
Humidity: max 80%
Non-condensing
0-50°C
Humidity: max 80%
Non-condensing
V i a G h i a r o l a Ve c c h i a , 3 2 - 4 10 4 2 F i o r a n o ( M O ) I t a l i a - Te l + 3 9 0 5 3 6 8 3 0 6 2 0 - F a x + 3 9 0 5 3 6 8 31215
w w w. h a r d w a r e s o l u t i o n s . i t
Compact
K15
Dimensions
V i a G h i a r o l a Ve c c h i a , 3 2 - 4 10 4 2 F i o r a n o ( M O ) I t a l i a - Te l + 3 9 0 5 3 6 8 3 0 6 2 0 - F a x + 3 9 0 5 3 6 8 31215
w w w. h a r d w a r e s o l u t i o n s . i t
