A R V A areaC E A R V A areaC E

Servizi, Tecnologie, Sistemi Informatici
per l’Agricoltura e l’Ambiente
www.arvatec.it

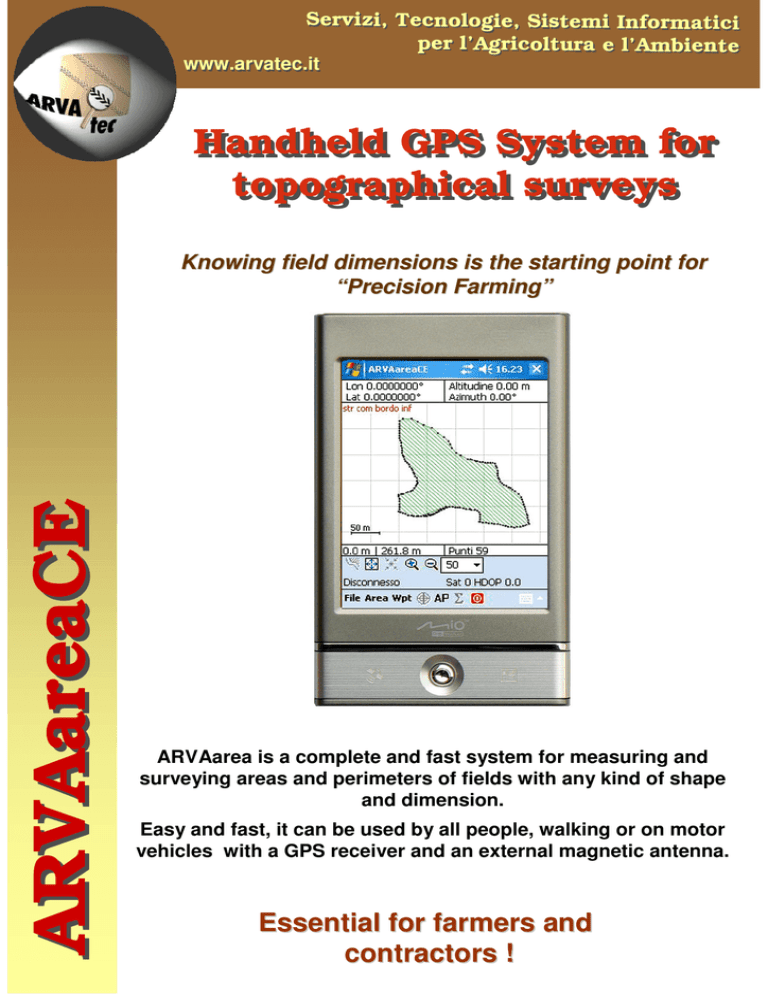

Handheld
Handheld GPS
GPS System
System for
for
topographical
topographical surveys
surveys
ARVAareaCE
Knowing field dimensions is the starting point for
“Precision Farming”
ARVAarea is a complete and fast system for measuring and
surveying areas and perimeters of fields with any kind of shape
and dimension.
Easy and fast, it can be used by all people, walking or on motor
vehicles with a GPS receiver and an external magnetic antenna.
Essential for farmers and
contractors !
THE
THE COMPONETS
COMPONETS
Software ARVAareaCE
Handheld Mio P360 +
Accessories
Real time calculation of areas and perimeters with any shape
Measure of distances and area’s division
Visualization of position data
Graphical visualization of covered path
Automatic or manual naming of every trace of survey
Lateral offset in the measurement of areas and lines
Waypoint memorization in Lat/Lon, UTM and TM
Automatic point recording by distance or manual
Navigation to waypoint
Possibility to record notation
More accurate GPS survey with “Average” function
Scale and Zoom function
Coordinate Lat/Lon, UTM e TM (creating user’s proiection
Gauss-Krüger)
270 Predifined Map Datums + 1 user difined datum
Conversione between Coordinates and Zones
Measurement’s unit: Metric and English
Data Importing from ESRI Shapefile (.SHP) and ASCII (.TXT)
Data Exporting to ESRI Shapefile (.SHP), ASCII (.TXT),
AUTOCAD (.DXF) 2D and 3D, and Google Earth (.KML)
HDOP and quality filters
GPS Status visualization: GPS, DGPS, RTK FLOAT, RTK FIX
Compatible with Windows Mobile 2003/2005/2006
Display TFT 3,5”
S.O. Windows Mobile 6
Processor 400 Mhz
Memory 128 MB ROM
64 MB SDRAM
SD/MMC Reader
20 channels GPS integrated SirfStar III
Wall charger
Car charger
USB PC conneting cable
External GPS antenna
Suction cap support
CD Starter Kit
ARVAtec s.r.l.
Sellers :
Services, Technology, Informatics Systems
for Agriculture and Environment
Sede Amministrativa e Operativa:
Via G. Matteotti, 31
20027 Rescaldina (MI)
Tel. +39 (0)331 46.48.40
Fax. +39 (0)331 1770532
Net Fax: 178.222.38.07
E-mail: [email protected]
Web: http://www.arvatec.it
