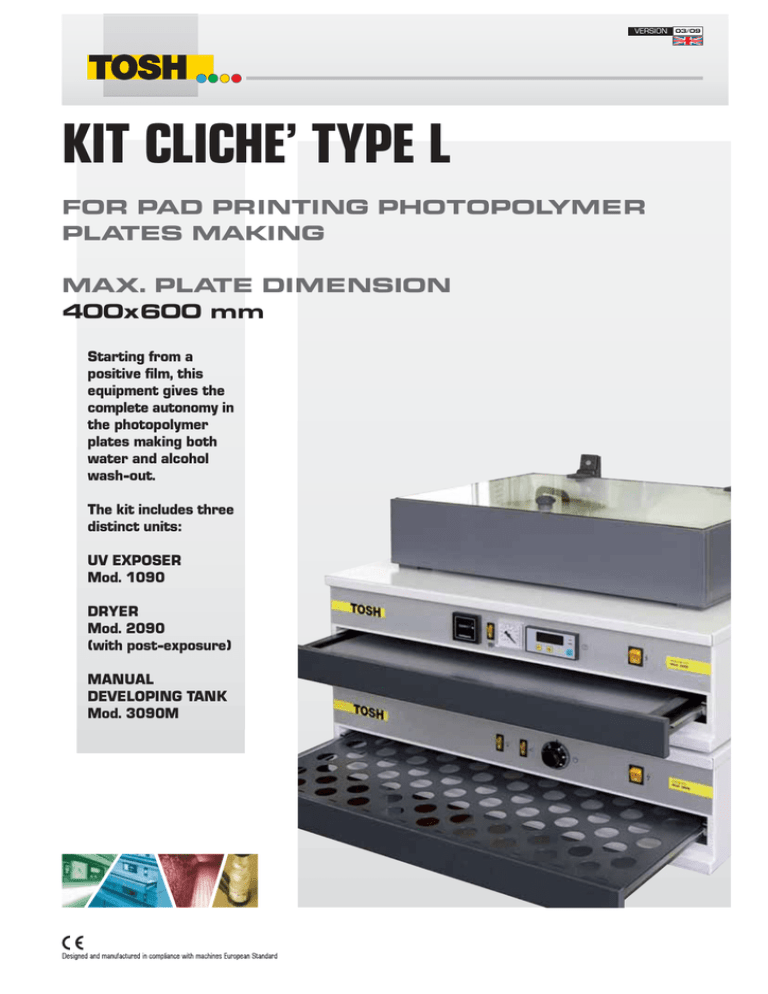

KIT CLICHE` TYPE L

VERSION
KIT CLICHE’ TYPE L
FOR PAD PRINTING PHOTOPOLYMER
PLATES MAKING
MAX. PLATE DIMENSION
400x600 mm
Starting from a
positive film, this
equipment gives the
complete autonomy in
the photopolymer
plates making both
water and alcohol
wash-out.
The kit includes three
distinct units:
UV EXPOSER
Mod. 1090
DRYER
Mod. 2090
(with post-exposure)
MANUAL
DEVELOPING TANK
Mod. 3090M
03/09
VERSION
03/09
KIT CLICHE’ TYPE L
UV EXPOSER Mod. 1090
Max. plate dimension
UV Lamps
Vacuum pump
Digital Timer
Size
Weight
Power supply
Electrical Input
400x600mm
nr. 6 x 20 W
nr. 1 – 30W
from 1’’ to 99’ 59’’
760x720x215(h)mm
37 kg.
230 V – 50 Hz
300 W
DRYER Mod. 2090 (with post-exposure)
Max. plate dimension
UV Lamps
Analogic Timer
Thermofan
Size
Weight
Power supply
Electrical Input
440x620mm
nr. 4 x 20 W
from 0’ to 60’
2000 W
760x720x215(h)mm
35 kg.
230 V – 50 Hz
2200 W
MANUAL DEVELOPING TANK Mod. 3090M
Max. plate dimension
Capacity
Size
Weight
400x600mm
20 lt.
640x535x200(h)mm
11 kg
With brush 150x150 mm size.
SUPPORT TROLLEY WITH OUTLET Mod. 5000 (optional)
It allows an easier handling of the Kit type L.
TOSH S.r.l. - Via Lambro 84, I - 20089 Quinto Stampi Rozzano (MI)
Tel. +39 02 57566.1 (10 linee r.a.) - Fax +39 02 89200266
E-mail: [email protected]
www.tosh.it
GRAFICA TOSH - Printed 03/09
S P E C I F I C AT I O N S M AY B E S U B J E C T T O C H A N G E W I T H O U T N O T I C E
