mounting plates

mounting
plates
automatic / cruciform

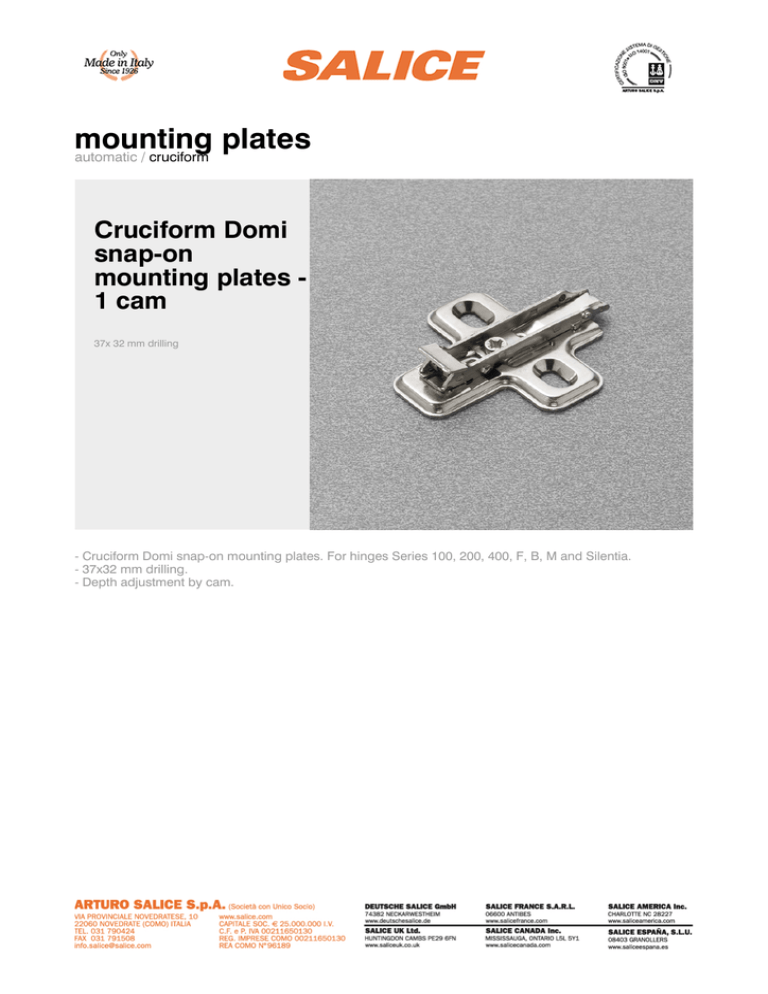

Cruciform Domi
snap-on
mounting plates 1 cam
37x 32 mm drilling
- Cruciform Domi snap-on mounting plates. For hinges Series 100, 200, 400, F, B, M and Silentia.
- 37x32 mm drilling.
- Depth adjustment by cam.
mounting
plates
automatic / cruciform
Cruciform Domi snap-on mounting plates - 1
cam
37x 32 mm drilling
BAV3M/F
Steel mounting
plates.
Fixing: wood screw.
B 3.5 DIN 7983.
BAV3E/F
Die-cast mounting
plates.
Fixing: wood screw.
B 3.5 DIN 7983.
BAVGM/F
Steel mounting
plates.
Fixing: Euroscrew.
Drilling ø5x11 mm.
mounting
plates
automatic / cruciform
Cruciform Domi snap-on mounting plates - 1
cam
37x 32 mm drilling
BAVGE/F
Die-cast mounting
plates.
Fixing: Euroscrew.
Drilling ø5x11 mm.
BAV4M/F
Steel mounting
plates.
Fixing: expanding
dowel.
Drilling ø5x7.5 mm.
BAV4E/F
Die-cast mounting
plates.
Fixing: expanding
dowel.
Drilling ø5x7.5 mm.
mounting
plates
automatic / cruciform
Cruciform Domi snap-on mounting plates - 1
cam
37x 32 mm drilling
BAV7M/F
Steel mounting
plates.
Fixing: knock-in
dowel.
Drilling ø10x10 mm.
BAV7E/F
Die-cast mounting
plates.
Fixing: knock-in
dowel.
Drilling ø10x10 mm.
