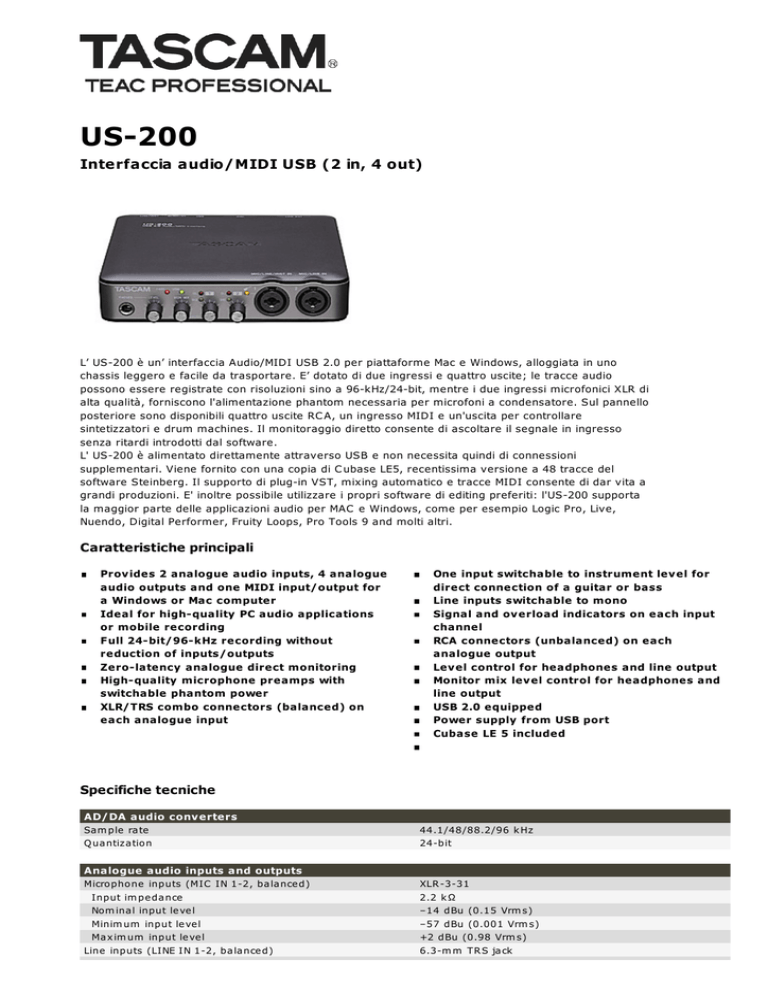

Informazione prodotto

US-200
Interfaccia audio/MIDI USB (2 in, 4 out)
L’ US-200 è un’ interfaccia Audio/MIDI USB 2.0 per piattaforme Mac e Windows, alloggiata in uno
chassis leggero e facile da trasportare. E’ dotato di due ingressi e quattro uscite; le tracce audio
possono essere registrate con risoluzioni sino a 96-kHz/24-bit, mentre i due ingressi microfonici XLR di
alta qualità, forniscono l'alimentazione phantom necessaria per microfoni a condensatore. Sul pannello
posteriore sono disponibili quattro uscite RC A, un ingresso MIDI e un'uscita per controllare
sintetizzatori e drum machines. Il monitoraggio diretto consente di ascoltare il segnale in ingresso
senza ritardi introdotti dal software.
L' US-200 è alimentato direttamente attraverso USB e non necessita quindi di connessioni
supplementari. Viene fornito con una copia di C ubase LE5, recentissima versione a 48 tracce del
software Steinberg. Il supporto di plug-in VST, mixing automatico e tracce MIDI consente di dar vita a
grandi produzioni. E' inoltre possibile utilizzare i propri software di editing preferiti: l'US-200 supporta
la maggior parte delle applicazioni audio per MAC e Windows, come per esempio Logic Pro, Live,
Nuendo, Digital Performer, Fruity Loops, Pro Tools 9 and molti altri.
Caratteristiche principali
Provides 2 analogue audio inputs, 4 analogue
audio outputs and one MIDI input/output for
a Windows or Mac computer
Ideal for high-quality PC audio applications
or mobile recording
Full 24-bit/96-kHz recording without
reduction of inputs/outputs
Zero-latency analogue direct monitoring
High-quality microphone preamps with
switchable phantom power
XLR/TRS combo connectors (balanced) on
each analogue input
One input switchable to instrument level for
direct connection of a guitar or bass
Line inputs switchable to mono
Signal and overload indicators on each input
channel
RCA connectors (unbalanced) on each
analogue output
Level control for headphones and line output
Monitor mix level control for headphones and
line output
USB 2.0 equipped
Power supply from USB port
Cubase LE 5 included
Specifiche tecniche
AD/DA audio converters
Sam ple rate
Q uantization
44.1/48/88.2/96 k Hz
24-bit
Analogue audio inputs and outputs
Microphone inputs (MIC IN 1-2, balanced)
Input im pedance
Nom inal input level
Minim um input level
Max im um input level
Line inputs (LINE IN 1-2, balanced)
XLR-3-31
2.2 k Ω
–14 dBu (0.15 Vrm s)
–57 dBu (0.001 Vrm s)
+2 dBu (0.98 Vrm s)
6.3-m m TRS jack
Input im pedance
Nom inal input level
Minim um input level
Max im um input level
Instrum ent input (INST IN 1, unbalanced)
Input im pedance
Nom inal input level
Minim um input level
Max im um input level
Line outputs (LINE O UT 1-4, unbalanced)
O utput im pedance
Nom inal output level
Max im um output level
Headphones output (PHO NES)
Max im um output power
15 k Ω
+4 dBu (1.23 Vrm s)
–39 dBu (0.008 Vrm s)
+20 dBu (7.75 Vrm s)
6.3-m m jack
1 MΩ
–13 dBV (0.22 Vrm s)
–56 dBV (0.001 Vrm s)
+3 dBV (1.41 Vrm s)
RCA
200 Ω
–10 dBV (0.316 Vrm s)
+6 dBV (2 Vrm s)
6.3-m m (1/4") stereo phone jack
18 m W + 18 m W (1 k Hz, THD 0.1 %, 32 Ω)
Other inputs and outputs
MIDI input (MIDI IN)
Form at
MIDI output (MIDI O UT)
Form at
USB
Form at
5-pin DIN connector
Standard MIDI form at
5-pin DIN connector
Standard MIDI form at
4-pin USB type B
USB2.0 High speed (480 Mbit/s)
Audio performance
Frequency response
Signal-to-noise ratio
Total harm onic distortion
20 Hz-20 k Hz +0.5/–1.0 dB (44.1/48
20 Hz-40 k Hz +0.5/–1.5 dB (88.2/96
≥98 dB
(LINE IN to LINE O UT with Gain k nobs
k Hz, JEITA)
≤0.0045 %
(LINE IN to LINE O UT with Gain k nobs
k Hz, JEITA)
k Hz, JEITA)
at m inim um , 44.1
at m inim um , JEITA)
System requirements
W indows
O perating system s
Com puter system s
CPU/clock
Mem ory
Protocols
Mac
Supported operating system s
Supported com puter system s
CPU/clock
Mem ory
Protocols
W indows XP, 32 bit, SP3 or later
W indows XP, 64 bit, SP2 or later
W indows Vista, 32 bit or 64 bit, SP2 or later
W indows 7, 32 bit or 64 bit
W indows com patible com puter with a USB 2.0 port
Pentium 4, 1 GHz or faster
AMD Athlon, 1 GHz or faster
or equivalent processor
1 GB or m ore
ASIO 2, W DM (MME)
Mac O S X 10.5.8 or later
Mac O S X 10.6.3 or later
Apple Mac series equipped with a USB port as standard
equipm ent
Intel processor or PowerPC G4, 1 GHz or faster
1 GB or m ore
CoreAudio, CoreMIDI
Power requirements and other specifications
Power supply
Power consum ption
Ex ternal dim ensions (W x H x D)
W eight
O perating tem perature range
Bundled software
Design e caratteristiche possono variare senza preavviso.
Ultimo aggiornamento: 2015-02-12 12:33:32 UTC
Via USB (5
2W
172 m m x
172 m m x
0.48 k g
5–35 °C
Cubase LE
V, m ax . 500 m A)
41 m m x 151 m m (without projections)
44 m m x 165 m m (with projections)
5 (for W indows or Mac O S X)
