Flush Mount Template

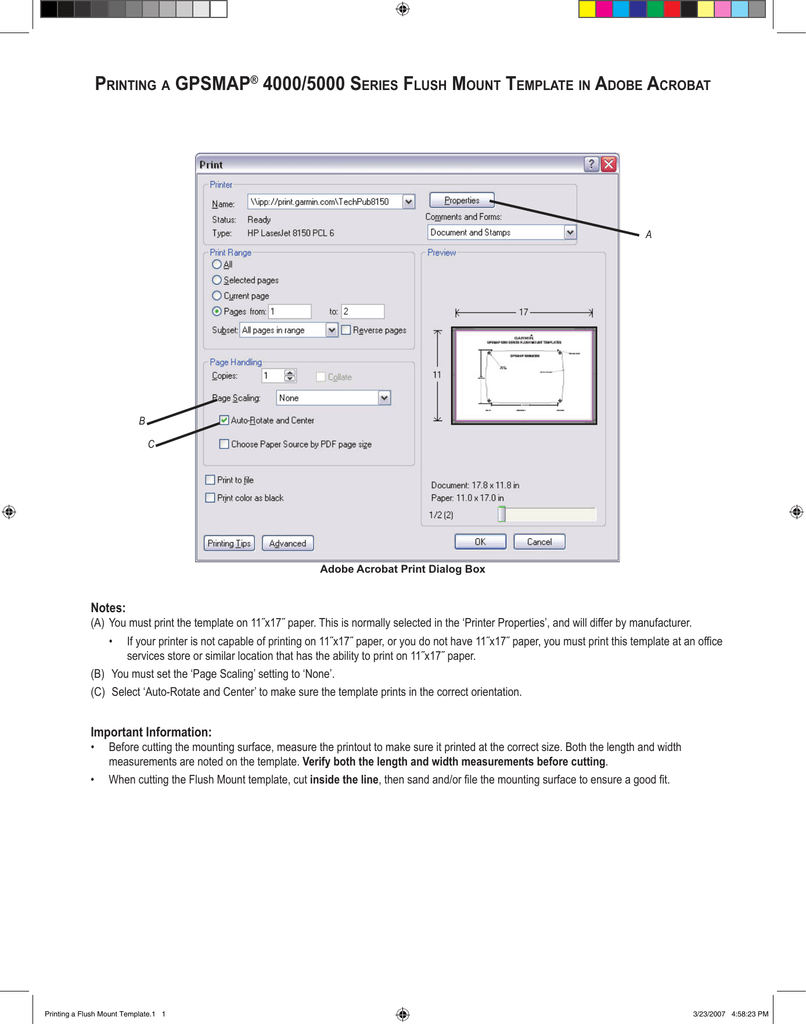

Printing a GPSMAP® 4000/5000 Series Flush Mount Template in Adobe Acrobat
A
B
C
Adobe Acrobat Print Dialog Box
Notes:
(A) You must print the template on 11˝x17˝ paper. This is normally selected in the ‘Printer Properties’, and will differ by manufacturer.
• If your printer is not capable of printing on 11˝x17˝ paper, or you do not have 11˝x17˝ paper, you must print this template at an office
services store or similar location that has the ability to print on 11˝x17˝ paper.
(B) You must set the ‘Page Scaling’ setting to ‘None’.
(C) Select ‘Auto-Rotate and Center’ to make sure the template prints in the correct orientation.
Important Information:
• Before cutting the mounting surface, measure the printout to make sure it printed at the correct size. Both the length and width
measurements are noted on the template. Verify both the length and width measurements before cutting.
• When cutting the Flush Mount template, cut inside the line, then sand and/or file the mounting surface to ensure a good fit.
Printing a Flush Mount Template.1 1
3/23/2007 4:58:23 PM
GPSMAP® 4008/4208 Flush Mount Template
Recommended clearance for sun cover handle
Espace de sécurité recommandé pour manipuler
le pare-soleil
Spazio libero consigliato per la maniglia della
copertura di protezione dai raggi solari
Unit dimensions: 11 3/16 in. (284.4 mm) W ×
6 31/32 in. (176.9mm) H
Empfohlener Abstand für Griff des
Sonnenschutzes
Dimensions de l’appareil : 284,4 mm ×
176,9 mm (l x H)
5
/32 in. (4 mm)
Se recomienda despejar el mango de la cubierta
para el sol
Dimensioni unità: L 284,4 mm × A 176,9 mm
Rekommenderat utrymme för solskyddshandtag
Geräteabmessungen: Breite 284,4 mm ×
Höhe 176,9 mm
Anbefalet plads til soldækslets håndtag
Anbefalt klaring for håndtaket på soldekselet
Dimensiones de la unidad: 284,4 mm ancho ×
176,9 mm alto
Enhetsmått: 284,4mm B × 176,9mm H
Enhedens mål: 284,4 mm B × 176,9 mm H
1
/2 in.
13 mm
Mål på enheten: 284,4 mm B × 176,9 mm H
6 17/32 in.
(165.90 mm)
Recommended clearance for SD card
door
/8 in. (9.5 mm)
3
1
/2 in.
13 mm
Débattement recommandé pour le cache
de la carte SD
Spazio libero consigliato per lo sportello
della scheda SD
Empfohlener Abstand für SDSpeicherkartenabdeckung
Se recomienda despejar la puerta de la
tarjeta SD
Rekommenderat utrymme för SDkortlucka
9 5/8 in. (244.50 mm)
March 2009
Anbefalet fri plads til SD-kortlåg
190-00779-03 Rev. C
Anbefalt klaring for SD-kortdekselet
Printed in Taiwan
