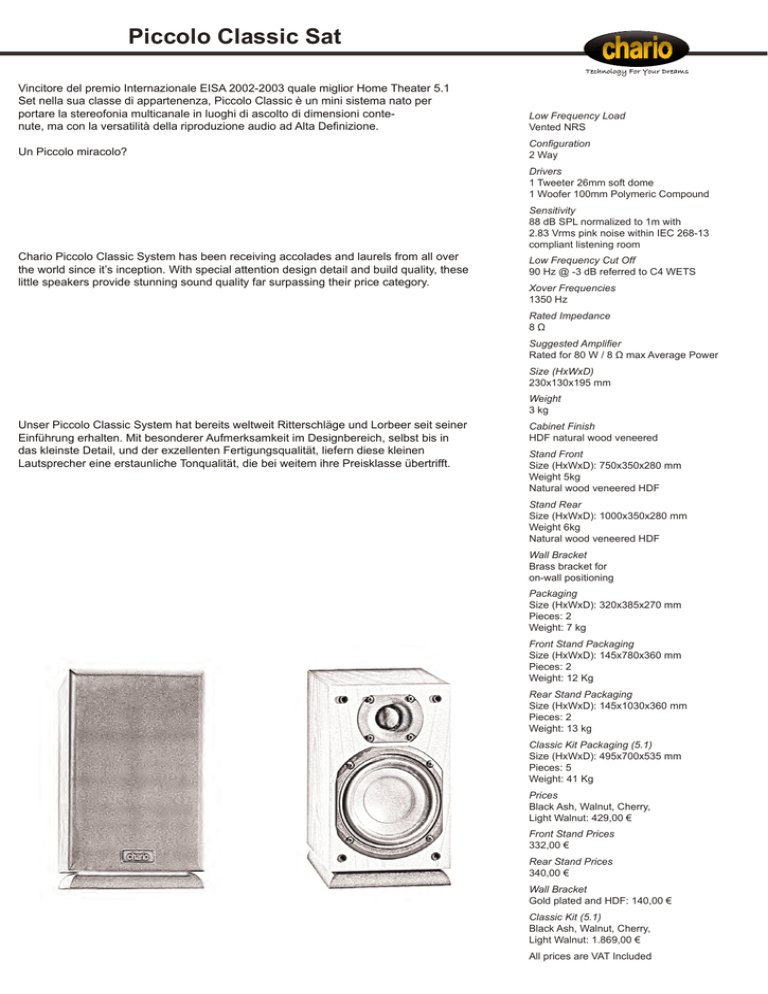

Piccolo Classic Sat

Piccolo Classic Sat
Vincitore del premio Internazionale EISA 2002-2003 quale miglior Home Theater 5.1
Set nella sua classe di appartenenza, Piccolo Classic è un mini sistema nato per
portare la stereofonia multicanale in luoghi di ascolto di dimensioni contenute, ma con la versatilità della riproduzione audio ad Alta Definizione.
Low Frequency Load
Vented NRS
Un Piccolo miracolo?
Configuration
2 Way
Drivers
1 Tweeter 26mm soft dome
1 Woofer 100mm Polymeric Compound
Chario Piccolo Classic System has been receiving accolades and laurels from all over
the world since it’s inception. With special attention design detail and build quality, these
little speakers provide stunning sound quality far surpassing their price category.
Sensitivity
88 dB SPL normalized to 1m with
2.83 Vrms pink noise within IEC 268-13
compliant listening room
Low Frequency Cut Off
90 Hz @ -3 dB referred to C4 WETS
Xover Frequencies
1350 Hz
Rated Impedance
8Ω
Suggested Amplifier
Rated for 80 W / 8 Ω max Average Power
Size (HxWxD)
230x130x195 mm
Weight
3 kg
Unser Piccolo Classic System hat bereits weltweit Ritterschläge und Lorbeer seit seiner
Einführung erhalten. Mit besonderer Aufmerksamkeit im Designbereich, selbst bis in
das kleinste Detail, und der exzellenten Fertigungsqualität, liefern diese kleinen
Lautsprecher eine erstaunliche Tonqualität, die bei weitem ihre Preisklasse übertrifft.
Cabinet Finish
HDF natural wood veneered
Stand Front
Size (HxWxD): 750x350x280 mm
Weight 5kg
Natural wood veneered HDF
Stand Rear
Size (HxWxD): 1000x350x280 mm
Weight 6kg
Natural wood veneered HDF
Wall Bracket
Brass bracket for
on-wall positioning
Packaging
Size (HxWxD): 320x385x270 mm
Pieces: 2
Weight: 7 kg
Front Stand Packaging
Size (HxWxD): 145x780x360 mm
Pieces: 2
Weight: 12 Kg
Rear Stand Packaging
Size (HxWxD): 145x1030x360 mm
Pieces: 2
Weight: 13 kg
Classic Kit Packaging (5.1)
Size (HxWxD): 495x700x535 mm
Pieces: 5
Weight: 41 Kg
Prices
Black Ash, Walnut, Cherry,
Light Walnut: 429,00 €
Front Stand Prices
332,00 €
Rear Stand Prices
340,00 €
Wall Bracket
Gold plated and HDF: 140,00 €
Classic Kit (5.1)
Black Ash, Walnut, Cherry,
Light Walnut: 1.869,00 €
All prices are VAT Included
Piccolo Classic Dialogue
Vincitore del premio Internazionale EISA 2002-2003 quale miglior Home Theater 5.1
Set nella sua classe di appartenenza, Piccolo Classic è un mini sistema nato per
portare la stereofonia multicanale in luoghi di ascolto di dimensioni contenute, ma con la versatilità della riproduzione audio ad Alta Definizione.
Low Frequency Load
Vented NRS – TV screen 2π sr
Un Piccolo miracolo?
Configuration
2 way
Drivers
1 Tweeter 26mm soft dome
2 Woofers 100mm Polymeric Compound
Chario Piccolo Classic System has been receiving accolades and laurels from all over
the world since it’s inception. With special attention design detail and build quality, these
little speakers provide stunning sound quality far surpassing their price category.
Sensitivity
88dB SPL normalized to 1 m with 2.83 Vrms
pink noise within IEC 268-13 compliant
listening room
Low Frequency Cut Off
90Hz @ -3dB referred to C4 WETS
XOver Frequencies
1350 Hz
Rated Impedance
8Ω
Suggested Amplifier
Rated for 80W/8Ω max Average Power
Size (HxWxD)
150x340x195mm
Weight
4 kg
Unser Piccolo Classic System hat bereits weltweit Ritterschläge und Lorbeer seit seiner
Einführung erhalten. Mit besonderer Aufmerksamkeit im Designbereich, selbst bis in
das kleinste Detail, und der exzellenten Fertigungsqualität, liefern diese kleinen
Lautsprecher eine erstaunliche Tonqualität, die bei weitem ihre Preisklasse übertrifft.
Cabinet Finish
HDF natural wood veneered
Packaging
Size (HxWxD): 185x380x230 mm
Pieces: 1
Weight: 6 Kg
Classic Kit Packaging (5.1)
Size (HxWxD): 720x640x550 mm
Pieces: 5
Weight: 45 Kg
Prices (one piece)
Black Ash, Walnut, Cherry,
Light Walnut: 374,00 €
Classic Kit (5.1)
Black Ash, Walnut, Cherry,
Light Walnut: 1869,00 €
All prices are VAT Included
Piccolo Star SW1
Vincitore del premio Internazionale EISA 2002-2003 quale miglior Home Theater 5.1
Set nella sua classe di appartenenza, Piccolo Classic è un mini sistema nato per
portare la stereofonia multicanale in luoghi di ascolto di dimensioni contenute, ma con la versatilità della riproduzione audio ad Alta Definizione.
Amplifier
Analogic Type Discrete BJT’s
Un Piccolo miracolo?
Average Electrical Power
100W
Protection
Yes
Volume Control
Yes
Cut-Off Freq. Control
Yes, continuous
Chario Piccolo Classic System has been receiving accolades and laurels from all over
the world since it’s inception. With special attention design detail and build quality, these
little speakers provide stunning sound quality far surpassing their price category.
Polarity Switch
Yes
Line Level Input
Mono-Stereo unbalanced RCA pin jack
Acoustical Load
Bass Reflex NRS with bi-exponential vent
Driver
200 mm Polymeric Compound
Low Pass Xover
40-180Hz Active 2nd order
Size (HxWxD)
380x290x390 mm
Unser Piccolo Classic System hat bereits weltweit Ritterschläge und Lorbeer seit seiner
Einführung erhalten. Mit besonderer Aufmerksamkeit im Designbereich, selbst bis in
das kleinste Detail, und der exzellenten Fertigungsqualität, liefern diese kleinen
Lautsprecher eine erstaunliche Tonqualität, die bei weitem ihre Preisklasse übertrifft.
Weight
18 kg
Cabinet Finishing
HDF natural wood veneered
Packaging
Size (HxWxD): 435x480x345 mm
Pieces: 1
Weight: 19 Kg
Prices
Black Ash, Cherry,
Walnut, Light Walnut: 729,00 €
All prices are VAT Included
