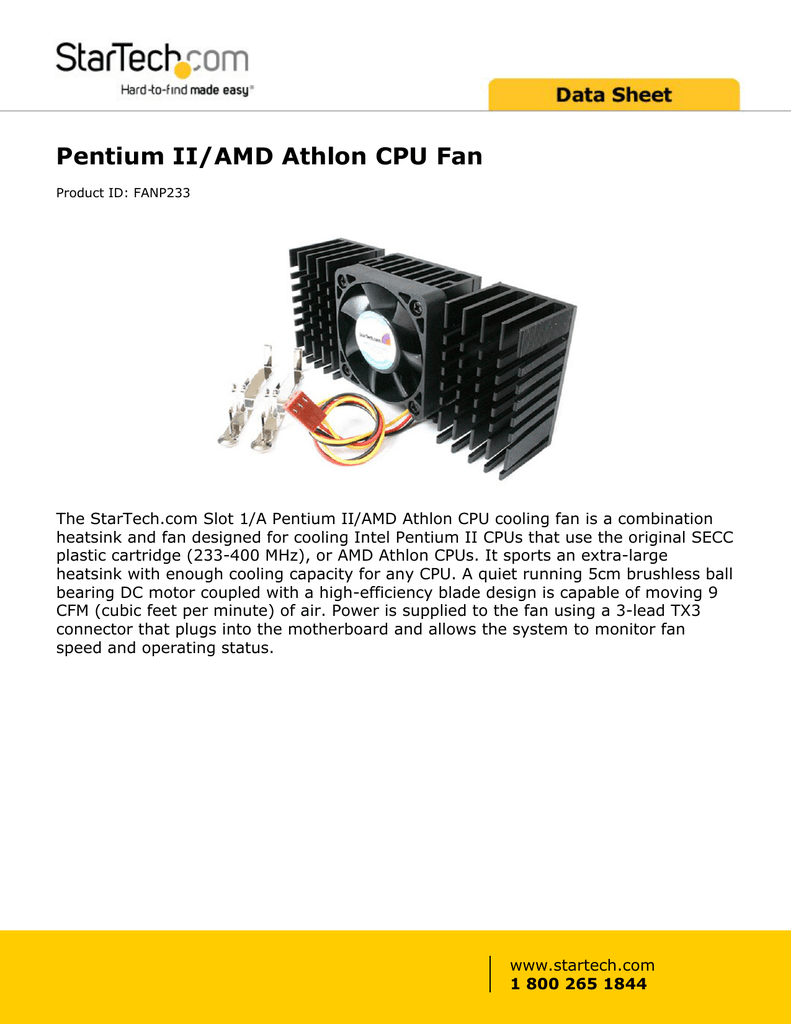

Pentium II/AMD Athlon CPU Fan

Pentium II/AMD Athlon CPU Fan
Product ID: FANP233
The StarTech.com Slot 1/A Pentium II/AMD Athlon CPU cooling fan is a combination
heatsink and fan designed for cooling Intel Pentium II CPUs that use the original SECC
plastic cartridge (233-400 MHz), or AMD Athlon CPUs. It sports an extra-large
heatsink with enough cooling capacity for any CPU. A quiet running 5cm brushless ball
bearing DC motor coupled with a high-efficiency blade design is capable of moving 9
CFM (cubic feet per minute) of air. Power is supplied to the fan using a 3-lead TX3
connector that plugs into the motherboard and allows the system to monitor fan
speed and operating status.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
•
•
Designed for SECC mounted Pentium II CPUs
Use thermal heatsink compound (HEATGREASE or HEATGREASE10)
for optimal performance
Features
•
•
•
Specially designed for Pentium II 233+ CPUs
Includes thermal conductive tape for improved heat transfer
Steel clip provides a secure fit
www.startech.com
1 800 265 1844
Warranty
2 Years
Hardware
Tipo cuscinetti ventola
Cuscinetto a sfere
Prestazioni
RPM ventola
3500
Specifiche generali
124 x 57 x 38
12V
2 x 2x 0.25
28
280 grams
3500
4.75 x 2.25 x 1.5
50 x 50 x 10
9.5
Aluminum
Athlon up to 800 MHz
Ball Bearing
Pentium II up to 450 MHz
Plastic
SECC Type Slot 1 & Slot A
TX3 Motherboard
Velocità flusso aria
9.5 CFM
Connettore/i
Tipo/i connettori
1 - Ventola Molex (3 pin, TX3) Femmina
Caratteristiche
fisiche
Colore
Nero
Peso prodotto
9.9 oz [280 g]
Informazioni
confezione
Peso spedizione (confezione)
0.5 lb [0.2 kg]
Contenuto della
confezione
Incluso nella confezione
1 - SECC Slot 1 Pentium II CPU Fan
Product appearance and specifications are subject to change without notice.
