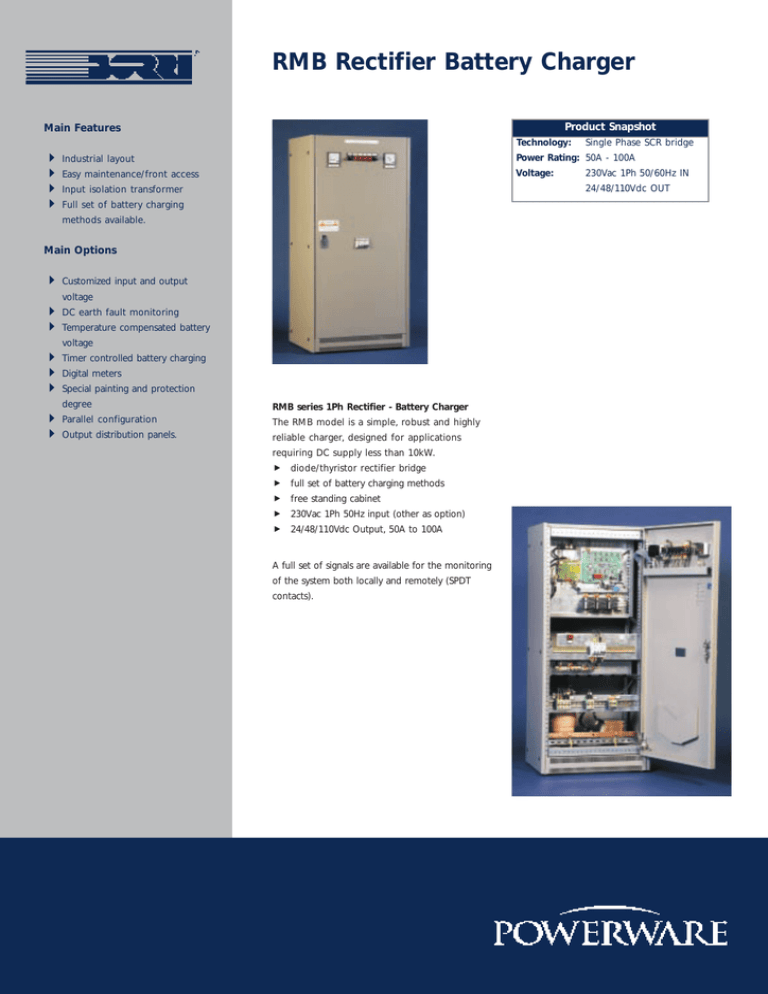

RMB Rectifier Battery Charger

RMB Rectifier Battery Charger
Product Snapshot
Main Features
Technology:
! Industrial layout
! Easy maintenance/front access
! Input isolation transformer
! Full set of battery charging
Power Rating: 50A - 100A
Voltage:
Main Options
! Customized input and output
voltage
! DC earth fault monitoring
! Temperature compensated battery
voltage
! Timer controlled battery charging
! Digital meters
! Special painting and protection
degree
230Vac 1Ph 50/60Hz IN
24/48/110Vdc OUT
methods available.
! Parallel configuration
! Output distribution panels.
Single Phase SCR bridge
RMB series 1Ph Rectifier - Battery Charger
The RMB model is a simple, robust and highly
reliable charger, designed for applications
requiring DC supply less than 10kW.
! diode/thyristor rectifier bridge
! full set of battery charging methods
! free standing cabinet
! 230Vac 1Ph 50Hz input (other as option)
! 24/48/110Vdc Output, 50A to 100A
A full set of signals are available for the monitoring
of the system both locally and remotely (SPDT
contacts).
RMB Rectifier Battery Charger
RMB Technical characteristics
Size (A)
50
100
Input voltage
1Ph. 230 +/-10% Vac (other as option)
Output voltage
24/48/110 Vdc
Ripple
+/-2%Vn (RMS)
Static stability
+/-1%Vn
Overload
120% for 10 min
Ventilation
Natural
Efficiency (%)
> 95%
Noise 1m (dBA)
< 60
Dimensions mm WXHXD
615X1400x460
Degree of protection
IP20 (other as option)
Color
RAL 7035 (other as option)
Operating Temperature
-10 to 40°C
One Line Diagram
Standards
low voltage assemblies
IEC 439-1, 439-2, 439-3
Semiconductor convertors
IEC 146-1-1, 146-1-3, 146-2
Power transformers
IEC 76
Degree of protection
IEC 529
Safety (CE marking)
EN 50178
Electromagnetic compatibility
(CE marking)
EN 50081-2 / EN 50082-2
Ordering Information (Typical)
RMB.
0100. 110. S
model.
size. Vdc. config
S=Single Unit, P= Parallel (block diode)
Head Office
Roma Office
Padova Office
Via Pellizza da Volpedo, 53 Via 8 Marzo,2
Via Costantino Maes, 68
Via Lisbona, 7
20092 Cinisello Balsamo
52012 Bibbiena Soci
00162 Roma ITALY
35127 Padova ITALY
(MILANO) ITALY
(AREZZO) ITALY
Tel. +39-06-86.21.09.99
Tel. +39-049-87.05.178
Tel. +39-02-6600661
Tel. +39 0575 5351
Fax +39-06-86.20.81.59
Fax +39-049-87.04.915
Fax +39-02-6122481
Fax. +39 0575 561 802
www.borri.it
Factory address
50 - 60Hz +/-5%
