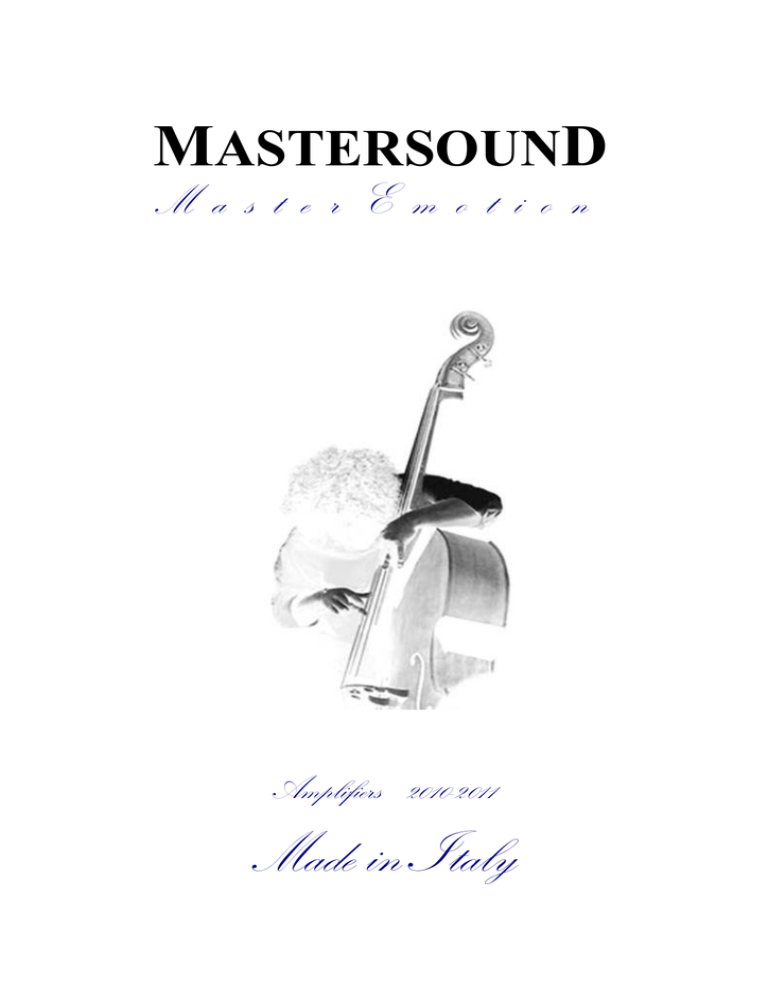

Amplifiers and Emotions versione 6_2_12 pag

MASTERSOUND
M a s t e r E m o t i o n
Amplifiers 2010-2011
Made in Italy
La nostra filosofia
La nostra filosofia è semplice:
cercare di produrre degli amplificatori che suscitino emozioni su chi li ascolta, e che soprattutto, le stesse, si rinnovino ad ogni brano musicale.
Cerchiamo che la musica riprodotta trasmetta le
emozioni dell'artista a chi lo sta ascoltando, senza eccessi, senza sotterfugi, senza nulla di più e
ovviamente nulla di meno dell'idea dell'esecutore.
L'ascoltatore deve sentirsi immerso nella scena
musicale, coinvolto, deve vivere i dettagli delle
voci degli strumenti e tutto in modo naturale...
con emozione.
Our philosophy
Our philosophy is simple:
We are producing amplifiers that arouse
emotion, in which every note of music
should precisely reflect the emotions of
the composer and the performer. In addition to the technical excellence, our amplifiers satisfy the ultimate search for the
‘life-like’ performance. Therefore, not
only a perfect soundstage, focus, and dynamics are involved, but also a ‘spirit’quite rare in many systems- blend in to
the totally synergy of your system.
The listeners feel immersed in the music,
and be carried away through enjoying
the life-like details of the instruments, in
the most natural means possible…with
emotion
Master Emotion
2
Amplificatori Integrati / Integrated Amplifiers
Due Venti S.E.
Caratteristiche / Specifications
Parallel single ended
Class of operation:
Power:
Tube complement:
Driver:
Input:
Input impedance
Class “A”
2 x 20 Watt
4 x EL34
2 x ECC802
4 Line
50K Ohm
Out put transformer: MASTERSOUND
Load impedance :
4 – 8 Ohms
Negative feed back :
0 dB
Bandwidht:
15 Hz / 30 kHz – 0dB
Dimensions:
43 x 20 x 33 cm.
(16,9 x 7,9 x 13 in)
Weight:
23 Kg. (50,7 lbs)
Due Trenta S.E.
Caratteristiche / Specifications
Parallel single ended
Class of operation:
Power:
Tube complement:
Driver:
Input:
Input impedance
Class “A”
2 x 30 Watt
4 x KT88
2 x ECC802
4 Line
50K Ohm
Out put transformer:
MASTERSOUND
Load impedance :
4 – 8 Ohms
Negative feed back :
0 dB
Bandwidht:
15 Hz / 30 kHz – 0dB
Dimensions:
43 x 20 x 33 cm.
(16,9 x 7,9 x 13 in)
Weight:
24 Kg. (53 lbs)
Remote control optional
Telecomando a richiesta
3
Master Emotion
Piccolo
Caratteristiche / Specifications
Single Ended
Class of operation:
Power:
Tube complement:
Drivers:
Input impedance
Inputs:
Out put transformer:
Load impedance:
Negative feedback:
Dimensions:
Weight:
class “A”
2 x 6 Watt
2 x EL 84
2 x ECC 802
50K Ohm
2 line
MASTERSOUND
4 – 8 Ohm
0 dB
24 x 28 x 11 cm
(9,4 x 11 x 4,3 in)
9,00 Kg.
(19,8 lbs)
300 B PSE 2
Caratteristiche / Specifications
Parallel Single Ended
Class of operation:
class “A”
Power:
2 x 24 Watt
Tube complement:
4 x 300 B
Pre-drivers:
2 x ECC802
Drivers:
2 x 5687 WB
Input impedance
50K Ohm
Inputs:
3 x Line + 1 Direct
Out put transformer:
MASTERSOUND
Load impedance:
4 – 8 Ohm
Negative feedback:
0 dB
Volume with remote control
Si/Yes
Bandwidth:
8 Hz / 40 kHz – 0dB
Dimensions:
45 x 43 x 27 cm.
(17,7 x 16,9 x 10,6 in)
Weight:
33 Kg. (72,7 lbs)
Master Emotion
4
Compact 300 B
Caratteristiche/Specifications
Single Ended
Class of operation:
class “A”
Power:
2 x 15 Watt
Tube complement:
2 x 300 B
Pre-drivers:
2 x ECC802
Drivers:
2 x 6SN7 GT
Input impedance
50K Ohm
Inputs:
3 x Line + 1 Direct
Out put transformer:
MASTERSOUND
Load impedance:
4 – 8 Ohm
Negative feedback:
0 dB
Volume with remote control
Si/Yes
Bandwidth:
8 Hz / 40 kHz – 0dB
Dimensions:
45 x 43 x 27 cm
(17,7 x 16,9 x 10,6 in)
Weight:
33 Kg. (72,7 lbs)
Compact 845
Caratteristiche/Specifications
Single Ended
Class of operation:
class “A”
Power:
2 x 30 Watt
Tube complement:
2 x 845
Pre-drivers:
2 x ECC802
Drivers:
2 x 6SN7 GT
Input impedance
50K Ohm
Inputs:
3 x Line + 1 Direct
Out put transformer:
MASTERSOUND
Load impedance:
4 – 8 Ohm
Negative feedback:
0 dB
Volume with remote control
Si/Yes
Bandwidth:
8 Hz / 40 kHz – 0dB
Dimensions:
45 x 43 x 27 cm.
(17,7 x 16,9 x 10,6 in)
Weight:
34 Kg (74,9 lbs)
5
Master Emotion
Evolution 845
Caratteristiche/Specifications
Single Ended dual mono
Class of operation:
class “A”
Power:
2 x 55 Watt
Tube complement:
4 x 845
Pre-drivers:
2 x ECC802
Drivers:
2 x 6SN7 GT
Input impedance
50K Ohm
Inputs:
3 x Line + 1 Direct
Out put transformer:
MASTERSOUND
Load impedance:
4 – 8 Ohm
Negative feedback:
0 dB
Volume with remote control
Si/Yes
Bandwidth:
12 H z / 47 kHz – 0dB
Dimensions
54 X 50 X 28 cm.
(21,2 x 19,7 x 11,1 in)
Weight:
53 Kg (116,8 lbs)
Master Emotion
6
Amplificatori Finali/ Final Amplifiers
300 B Monoblock
Caratteristiche/Specifications
Parallel Single Ended
Class of operation:
class “A”
Power:
2 X 40 Watt
Tube complement:
2 X 300 B
Drivers:
2 X 6SN7 GT
Input:
1 X RCA
Input impedance
100K Ohm
Input sensitivity :
1 volt
Out put transformer
MASTERSOUND
Load impedance:
4 – 8 Ohms
Negative feedback:
0 dB
Bandwidth:
8 Hz / 45 kHz – 0 dB
Dimensions:
53 X 29 X 26 cm.
(20,8 x 11,4 x 10,2 in)
Weight:
28 Kg. (61,7 lbs) Per unit
7
Master Emotion
Amplificatori Finali/ Final Amplifiers
Monoblock 845
Caratteristiche/Specifications
Parallel Single Ended
Class of operation:
class “A”
Power
2 X 50 Watt
Tube complement:
2 X 845
Drivers:
2 X 6SN7 GT
Input:
1 X RCA
Input impedance
100K OHM
Out put transformer
MASTERSOUND
Load impedance:
4 – 8 Ohms
Negative feedback:
0 dB
Bandwidth:
8 Hz / 40 kHz – 0 dB
Dimensions:
63 X 27 X 30 cm.
(24,8 x 10,6 x 11,8 in)
Weight:
34 Kg. (74,9 lbs) Per unit
Master Emotion
8
Amplificatori Finali/ Final Amplifiers
PF 100 Limited
Caratteristiche/Specifications
Parallel Single Ended
Class of operation:
Class “A”
Tube compleme
4 X 845
Input:
1 X RCA
Input sensitivity :
1 volt
Load impedance:
4 – 8 Ohms
Bandwidth:
12 Hz / 45 kHz
Weight:
2 X 52 Kg.
2 X 114,6 lbs
Power:
Drivers:
Input impedance
Output transformer
Negative feedback:
Dimensions:
2 X 117 Watt
3 X 6SN7 GT
100K Ohm
MASTERSOUND
0 dB
56 X 47 X 27 cm
(22 x 18,5 x 10,6 in)
The PF 100 Limited is the culmination of the collective knowledge and experience of
all those who work with Master Sound.
The total absence of feedback makes the “PF 100” fast, with imaging that is truly
amazing.
Our new, dual drive control system of the “PF 100’s” pre-amp section grew from
our careful research. Combined with our unique output transformer and powerful,
845 triodes working in Parallel Single Ended mode, the amplifier renders a genuinely engaging sound.
We use a semiautomatic biasing system, which once regulated, will give optimal
life to the final tubes.
Finally, we use 24 karat gold connections on the PF 100’s circuit gold board
9
Master Emotion
Preamplificatori/ Preamplifiers
PH L5
Caratteristiche/Specifications
Tube Preamplifier + phono MM
Bandwidht:
1 Hz / 100 kHz – 0dB
Tube complement:
4 x ECC 802 1 x ECC83
Input:
4 High level - 1 Phono MM
Out put:
2 + 1 rec
Volume with remote control
Si/Yes
Switch:
mono - stereo - mute
Dimensions:
42 x 39 x 12 cm
( 16,5 x 15,38 x 4,7 in)
Weight:
9 Kg. (19,8 lbs)
Master Emotion
10
Garanzia
Warranty
Il Vostro amplificatore Mastersound,
con la sola eccezione delle valvole, è coperto
da cinque anni di garanzia su tutti i difetti di
fabbricazione.
Durante il periodo di garanzia ogni
riparazione sarà gratuita.
I costi del trasporto dell’amplificatore sono a
carico del compratore.
Your Mastersound amplier, except the
tubes, comes with a five years limited
warranty covering defects in material and
craftsmanship.
During the warranty period, repairs
are provided free of charge. Transportation
costs and from the repair provider has to be
paid by the owner.
Visto la continua ricerca e sviluppo dei
nostri progetti ci possono essere delle
differenze rispetto alle caratteristiche
descritte.
Due to continuos progress in research
and development, our products may
present different features oh those
described.
Musica: tu ci hai insegnato a vedere con l'orecchio e a
udire con il cuore.
Music : you taught us to see with the ear, and hear with
the heart.
(K. Gibran)
11
Master Emotion
Master Sound sas
Via Cima XII n. 14 – 36051 Creazzo - Vicenza – Italy
Tel. +39 0444 521733
E-MAIL: [email protected] Web site: www.mastersoundsas.it
Master Emotion
Versione: 6.3
