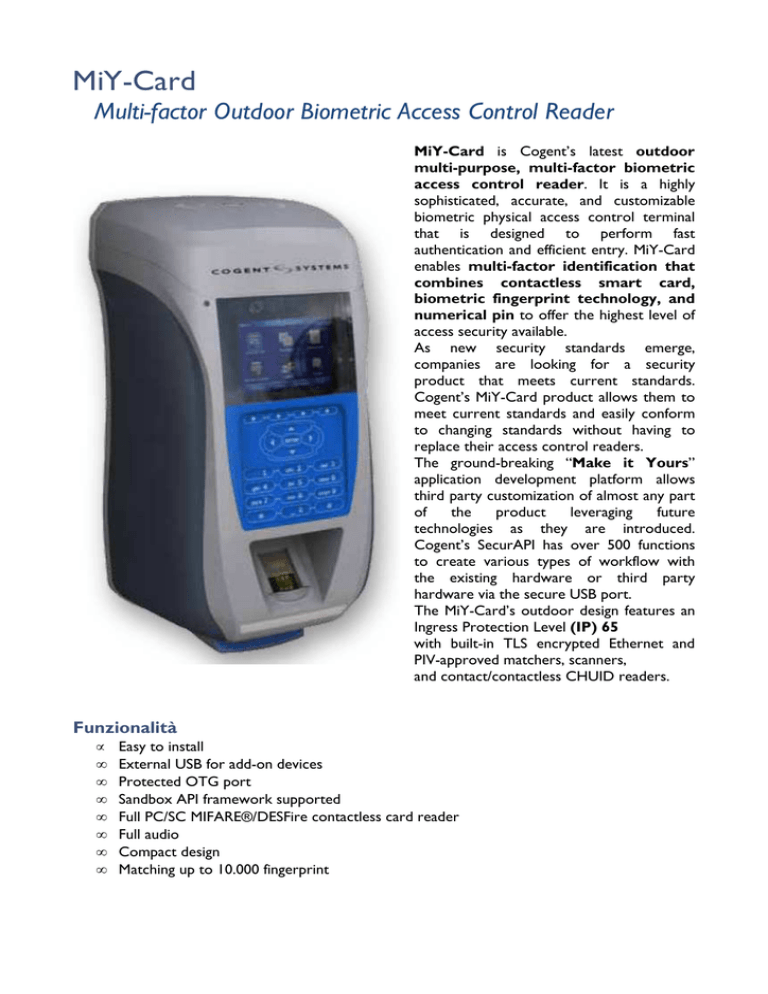

MiY-Card

MiY-Card
Multi-factor Outdoor Biometric Access Control Reader
MiY-Card is Cogent’s latest outdoor
multi-purpose, multi-factor biometric
access control reader. It is a highly
sophisticated, accurate, and customizable
biometric physical access control terminal
that is designed to perform fast
authentication and efficient entry. MiY-Card
enables multi-factor identification that
combines contactless smart card,
biometric fingerprint technology, and
numerical pin to offer the highest level of
access security available.
As new security standards emerge,
companies are looking for a security
product that meets current standards.
Cogent’s MiY-Card product allows them to
meet current standards and easily conform
to changing standards without having to
replace their access control readers.
The ground-breaking “Make it Yours”
application development platform allows
third party customization of almost any part
of
the
product
leveraging
future
technologies as they are introduced.
Cogent’s SecurAPI has over 500 functions
to create various types of workflow with
the existing hardware or third party
hardware via the secure USB port.
The MiY-Card’s outdoor design features an
Ingress Protection Level (IP) 65
with built-in TLS encrypted Ethernet and
PIV-approved matchers, scanners,
and contact/contactless CHUID readers.
Funzionalità
•
•
•
•
•
•
•
•
Easy to install
External USB for add-on devices
Protected OTG port
Sandbox API framework supported
Full PC/SC MIFARE®/DESFire contactless card reader
Full audio
Compact design
Matching up to 10.000 fingerprint
Specifiche tecniche
Caratteristica
Fingerprint Algorithm
Fingerprint Sensor
Image Capture Size
Enrollment Method
Allowable Finger Rotation
I/O Interface
Ethernet
Memory
Contactless Smart Card
Reader
LCD Display
LED
Keypad
Wiegand
I/O Power
Operating Temperature
Physical Dimensions
Weight
Device Management Software
Ingress Protection
Certification
Parametri tecnici
GSA FIPS 201 PIV approved matcher/
Cogent proprietary
500 ppi optical sensor, FIPS 201 PIV approved
480 x 320 pixels
Single-finger, multiple enrollments
+/- 45 °
RS485
10/100, TLS encryption
256 MB, 8 GB secure SD flash, 2 GB secure nand flash
PC/SC ISO 14443 MiFare/DESFire contactless card
reader
2.2 in color LCD screen
4 multi-color status LEDs
12 key non-mechanical keypad
Programmable up to 256 bits
12 V DC standard input, 300 mA, POE fully 802.3af
compliant
-4° F to 158° F (-20° C to 70° C)
4.4 x 8.1 x 3.8 in (111.1 x 206.4 x 95.3 mm)
~26.8 oz (~0.76 kg)
MiY Security Manager
IP65
FIPS 201 PIV, FCC, CE, RoHS compliant
Da anni le impronte digitali vengono utilizzate per riconoscere con certezza le persone, sostituendo, negli
ambienti ad alta sicurezza, carte magnetiche e PIN. Il costo dei dispositivi, tuttavia, insieme alla necessità di
collegarli a calcolatori in grado di svolgere le complesse operazioni di verifica, hanno a lungo frenato una più
ampia diffusione dei sistemi biometrici basati sul riconoscimento delle impronte digitali. Oggi, non più.
Riconosciamo persone non carte magnetiche
MiY-Card è un dispositivo di controllo accessi biometrico di eccellente qualità in grado di supportare
un’ampia varietà di ambienti operativi.
MiY-Card fornisce un’autenticazione uno a uno utilizzando una smart card ad avvicinamento unitamente alla
verifica biometrica dell’impronta digitale, offrendo sia la modalità di riconoscimento sulla carta (Match-onCard) che quella di riconoscimento sul dispositivo (Match-on-Device).
Il lettore per controllo accessi fisici MiY-ID è basato sul sensore ottico SecurASIC proprietario Cogent.
Eter Biometric Technologies Srl
Via Cartesio 3/1
42122 Bagno (Reggio Emilia) - Italy
Tel +39 0522 262 500
Fax +39 0522 624 688
E-mail [email protected]
Web www.eter.it
