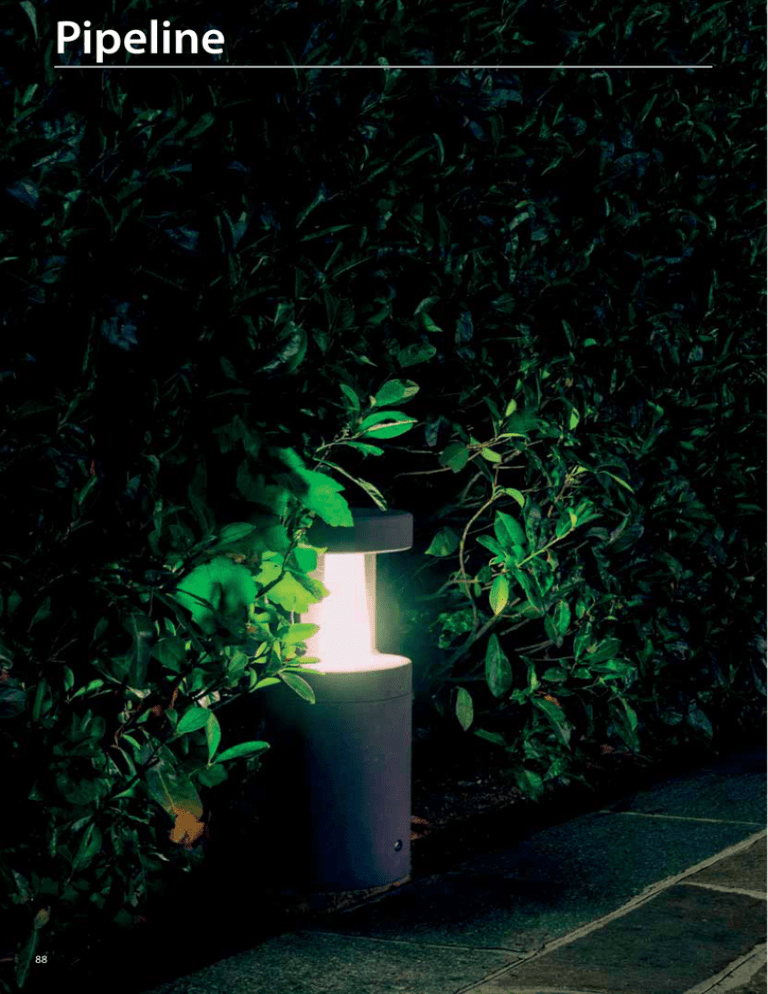

Pipeline - Lombardo

Pipeline
88
Pipeline
{
Accessori - Accessories - Accessoires
design: Italo Belussi
p. 91
Colori disponibili
Available colours - Couleurs disponibles
V
V
Cemento grigio
Concrete, grey - Ciment, gris
Cemento tortora
Concrete, brown - Ciment, marron
Materiale diffusore
Diffuser material - Type de diffuser
Policarbonato poliGLASS
Polycarbonate poliGLASS
Pipeline T 50
Pipeline T 90
!
$
'
Pipeline C 90
PipeWood 90
Pipeline C 50
PipeWood 50
Adatto anche ad uso esterno. Struttura del palo realizzata in cemento, cover superiore in
cemento o legno. Corpo illuminante con base e anello in tecnopolimero. Diffusore in
policarbonato tripla stabilizzazione UV, satinato effetto vetro. Guarnizioni in silicone. Bulloneria
in acciaio inox A4. Cavo di alimentazione H05RN-F pre-cablato.
Also suitable for outdoor use. Post structure made of concrete with concrete or wood top cover. Lighting body with
technopolymer base and ring. Polycarbonate diffuser with triple stabilisation against UV rays, satin glass effect.
Silicone gaskets. Stainless steel A4 nuts and bolts. Pre-wired cable type H05RN-F.
Egalement adapté à l’usage à l’extérieur. Structure du poteau réalisé en béton, cover supérieur en béton ou en bois.
Luminaire avec base et anneau en techno polymère. Diffuseur en polycarbonate triple stabilisation UV, effet verre
dépoli. Joints en silicone. Fixation en acier inox type A4. Câble d’alimentation H05RN-F pré-câblé.
Idoneo per lampade E27 LED
Suitable for E27 LED lamps
Convient pour lampes E27 LED
89
Pipeline
Accessori - Accessories - Accessoires
design: Italo Belussi
Pipeline C 90
IP 66
T IK 07 2J xx5 C
Lamp.
E27 max
CFL 1x33W
Specif.
CL.II
Energy
Col.
poliGLASS
9
V
V
LB109004
LB109005
Versione Monoemissione, altezza 90 cm. Cover superiore realizzata in cemento. Idoneo per applicazione a pavimento, bulloneria inclusa.
Peso prodotto: 16 Kg. Lampade dim. max: E27 196 mm Ø 58 mm.
Unidirectional version, height 90 cm. Upper cover made of concrete. Suitable for floor installation, nuts and bolts included. Product weight: 16 Kg/35.27Lb.
Lamp dim. max: E27 196 mm Ø 58 mm.
Version unidirectionelle, hauteur 90 cm. Cover supérieur réalisé en béton. Adapté pour une application au sol, fixation comprise. Poids produit: 16 kg/35.27Lb.
Lampes dim. max: E27 196 mm Ø 58 mm.
B= 1
IP 66
T IK 07 2J xx5 C
Lamp.
Specif.
Energy
Col.
poliGLASS
E27 max
CFL 1x33W
CL.II
9
V
V
LB109000
LB109001
900
35 1/2"
Pipeline T 90
239
9 3/8"
à
661
26"
Versione Biemissione, altezza 90 cm. Cover superiore realizzata in cemento. Idoneo per applicazione a pavimento, bulloneria inclusa.
Peso prodotto: 16 Kg. Lampade dim. max: E27 196 mm Ø 58 mm.
Bidirectional version, height 90 cm. Upper cover made of concrete. Suitable for floor installation, nuts and bolts included. Product weight: 16 Kg/35.27Lb.
Lamp dim. max: E27 196 mm Ø 58 mm.
Version bidirectionelle, hauteur 90 cm. Cover supérieur réalisé en béton. Adapté pour une application au sol, fixation comprise. Poids produit: 16 kg/35.27Lb.
Lampes dim. max: E27 196 mm Ø 58 mm.
à
B= 1
PipeWood 90
IP 66
ø 180
ø 7 1/8"
T IK 07 2J xx5 C
Lamp.
Specif.
Energy
Col.
poliGLASS
E27 max
CFL 1x33W
CL.II
9
V
V
LB109008
LB109009
Versione altezza 90 cm. Cover superiore realizzata in legno TEAK, materiale ideale per la costruzione di manufatti per l'esterno, grazie alla sua elevata
resistenza alle escursioni termiche, all'umidità, all'attacco della salsedine, e agli agenti atmosferici condizioni che mettono al contrario a dura prova
qualsiasi altro tipo di legno. Idoneo per applicazione a pavimento, bulloneria inclusa. Peso prodotto: 14 Kg. Lampade dim. max: E27 196 mm Ø 58 mm.
Version height 90 cm. Upper cover made of TEAK wood, an ideal material for producing items for outdoor use thanks to its considerable resistance to changes in temperature, humidity,
saltiness in the air and atmospheric agents, conditions which put all other types of wood to the test. Suitable for floor installation, nuts and bolts included. Product weight: 14 Kg/30.86Lb.
Lamp dim. max: E27 196 mm Ø 58 mm.
Version hauteur 90 cm. Cover supérieur réalisé en bois TECK, matériau idéal pour la construction de produits pour l’extérieur, grâce à sa particulière résistance aux amplitudes thermiques, à
l’humidité, à l’attaque du sel et aux agents atmosphériques, conditions qui mettent à dure épreuve toute sorte de bois. Convient pour l’application au sol, fixation comprise. Poids produit: 14
kg/30.86Lb. Lampes dim. max: 27 196 mm Ø 58 mm.
à
B= 1
Pipeline C 50
IP 66
T IK 07 2J xx5 C
Lamp.
E27 max
CFL 1x33W
Specif.
CL.II
Energy
Col.
poliGLASS
9
V
V
LB109006
LB109007
Versione Monoemissione, altezza 50 cm. Cover superiore realizzata in cemento. Idoneo per applicazione a pavimento, bulloneria inclusa.
Peso prodotto: 9 Kg. Lampade dim. max: E27 196 mm Ø 58 mm.
Unidirectional version, height 50 cm. Upper cover made of concrete. Suitable for floor installation, nuts and bolts included. Product weight: 9 Kg/19.84Lb.
Lamp dim. max: E27 196 mm Ø 58 mm.
Version unidirectionelle, hauteur 50 cm. Cover supérieur réalisé en béton. Adapté pour une application au sol, fixation comprise. Poids produit: 9 Kg/19.84Lb.
Lampes dim. max: E27 196 mm Ø 58 mm.
à
90
B= 1
p. 91
Pipeline
{
T IK 07 2J xx5 C
Specif.
Energy
Col.
poliGLASS
E27 max
CFL 1x33W
CL.II
9
V
V
LB109002
LB109003
Versione Biemissione, altezza 50 cm. Cover superiore realizzata in cemento. Idoneo per applicazione a pavimento, bulloneria inclusa.
Peso prodotto: 9 Kg. Lampade dim. max: E27 196 mm Ø 58 mm.
500
19 5/8"
IP 66
Lamp.
261
10 1/4"
Pipeline T 50
239
9 3/8"
design: Italo Belussi
ø 180
ø 7 1/8"
Bidirectional version, height 50 cm. Upper cover made of concrete. Suitable for floor installation, nuts and bolts included. Product weight: 9 Kg/19.84Lb.
Lamp dim. max: E27 196 mm Ø 58 mm.
Version bidirectionelle, hauteur 50 cm. Cover supérieur réalisé en béton. Adapté pour une application au sol, fixation comprise. Poids produit: 9 kg/19.84Lb.
Lampes dim. max: E27 196 mm Ø 58 mm.
à
B= 1
PipeWood 50
IP 66
Lamp.
Specif.
E27 max
CFL 1x33W
T IK 07 2J xx5 C
CL.II
Energy
Col.
poliGLASS
9
V
V
LB109010
LB109011
Versione altezza 50 cm. Cover superiore realizzata in legno TEAK, materiale ideale per la costruzione di manufatti per l'esterno, grazie alla sua elevata
resistenza alle escursioni termiche, all'umidità, all'attacco della salsedine, e agli agenti atmosferici condizioni che mettono al contrario a dura prova
qualsiasi altro tipo di legno. Idoneo per applicazione a pavimento, bulloneria inclusa. Peso prodotto: 9 Kg. Lampade dim. max: E27 196 mm Ø 58 mm.
Version height 50 cm. Upper cover made of TEAK wood, an ideal material for producing items for outdoor use thanks to its considerable resistance to changes in temperature, humidity,
saltiness in the air and atmospheric agents, conditions which put all other types of wood to the test. Suitable for floor installation, nuts and bolts included. Product weight: 9 Kg/19.84Lb.
Lamp dim. max: E27 196 mm Ø 58 mm.
Version hauteur 50 cm. Cover supérieur réalisé en bois TECK, matériau idéal pour la construction de produits pour l’extérieur, grâce à sa particulière résistance aux amplitudes thermiques, à
l’humidité, à l’attaque du sel et aux agents atmosphériques, conditions qui mettent à dure épreuve toute sorte de bois. Convient pour l’application au sol, fixation comprise. Poids produit: 9
kg/19.84Lb. Lampes dim. max: E27 196 mm Ø 58 mm.
à
B= 1
Morsettiera lineare a 3 vie a 3 poli, IP68, per
cavo ø 5/13,5 mm.
Coaxial Terminal block
3 way linear terminal block
Coaxial 3-pole terminal block, IP68, for cable diameter
7/12 mm.
3-way 3-pole linear terminal block, IP68, for cable Ø
5/13.5 mm.
Bornier coaxial
Bornier linéaire 3 voies
Bornier coaxial à 3 pôles, IP68, pour câble diam. 7/12
mm
Bornier linéaire 3 voies à 3 pôles, IP68, pour câble diam.
5/13,5 mm
63
2 1/2”
33
1 1/4”
Morsettiera coassiale a 3 poli, IP68, per cavo
ø 7/12 mm.
23
Morsettiera lineare
a 3 vie
7/8”
Morsettiera coassiale
68
2 5/8”
125
4 7/8”
Cod.
Cod.
LB11293
LB11294
B= 1
B= 1
91
