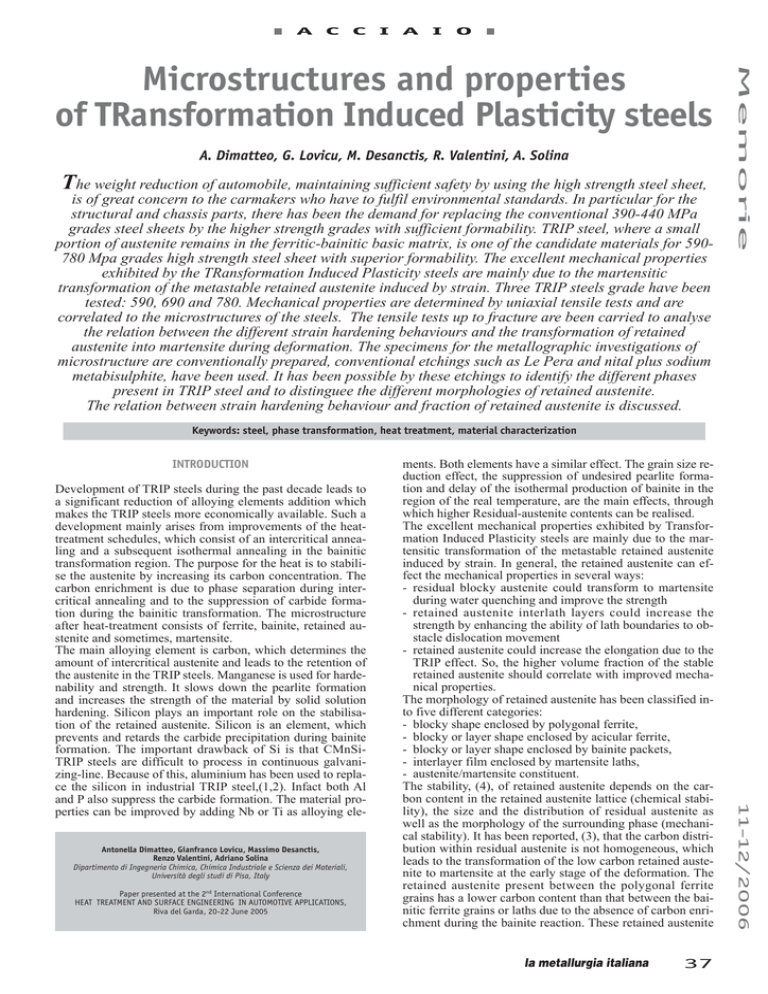

A. Dimatteo, G. Lovicu, M. Desanctis, R. Valentini, A. Solina
The weight reduction of automobile, maintaining sufficient safety by using the high strength steel sheet,
is of great concern to the carmakers who have to fulfil environmental standards. In particular for the
structural and chassis parts, there has been the demand for replacing the conventional 390-440 MPa
grades steel sheets by the higher strength grades with sufficient formability. TRIP steel, where a small
portion of austenite remains in the ferritic-bainitic basic matrix, is one of the candidate materials for 590780 Mpa grades high strength steel sheet with superior formability. The excellent mechanical properties
exhibited by the TRansformation Induced Plasticity steels are mainly due to the martensitic
transformation of the metastable retained austenite induced by strain. Three TRIP steels grade have been
tested: 590, 690 and 780. Mechanical properties are determined by uniaxial tensile tests and are
correlated to the microstructures of the steels. The tensile tests up to fracture are been carried to analyse
the relation between the different strain hardening behaviours and the transformation of retained
austenite into martensite during deformation. The specimens for the metallographic investigations of
microstructure are conventionally prepared, conventional etchings such as Le Pera and nital plus sodium
metabisulphite, have been used. It has been possible by these etchings to identify the different phases
present in TRIP steel and to distinguee the different morphologies of retained austenite.
The relation between strain hardening behaviour and fraction of retained austenite is discussed.
