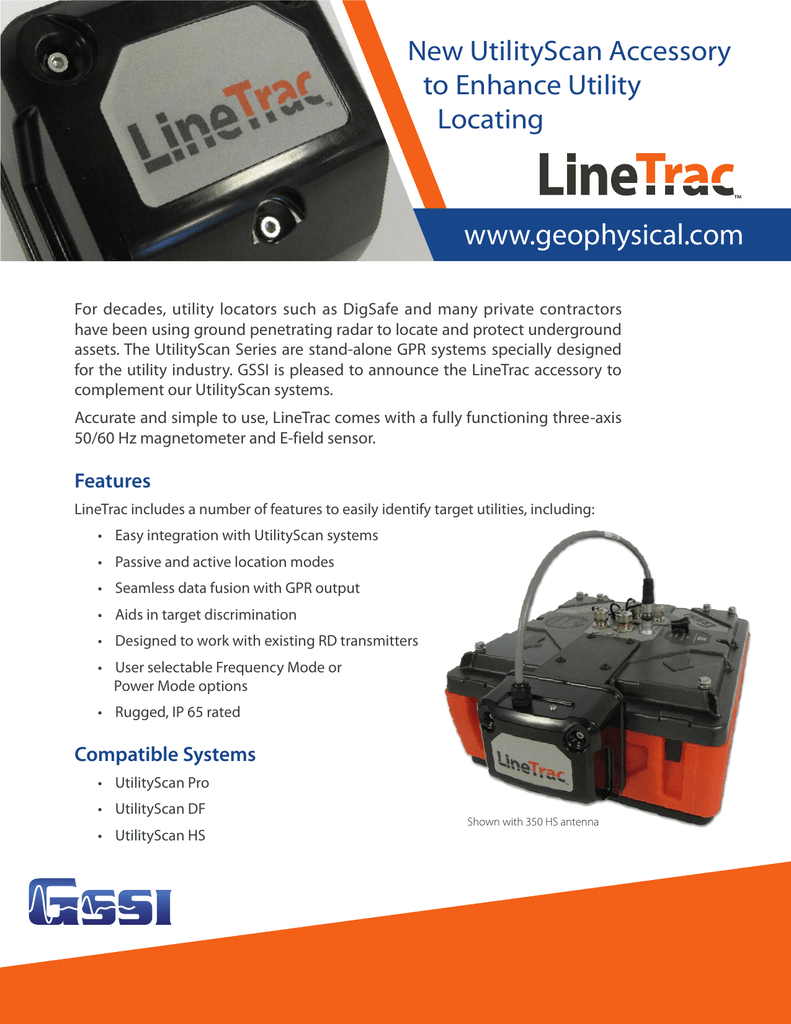

www.geophysical.com

New UtilityScan Accessory
to Enhance Utility
Locating
™
www.geophysical.com
For decades, utility locators such as DigSafe and many private contractors
have been using ground penetrating radar to locate and protect underground
assets. The UtilityScan Series are stand-alone GPR systems specially designed
for the utility industry. GSSI is pleased to announce the LineTrac accessory to
complement our UtilityScan systems.
Accurate and simple to use, LineTrac comes with a fully functioning three-axis
50/60 Hz magnetometer and E-field sensor.
Features
LineTrac includes a number of features to easily identify target utilities, including:
• Easy integration with UtilityScan systems
• Passive and active location modes
• Seamless data fusion with GPR output
• Aids in target discrimination
• Designed to work with existing RD transmitters
• User selectable Frequency Mode or
Power Mode options
• Rugged, IP 65 rated
Compatible Systems
• UtilityScan Pro
• UtilityScan DF
• UtilityScan HS
Shown with 350 HS antenna
LineTrac Data
Power Mode
Data illustrates two power lines
entering a large commercial
building.
Data colllected with:
UtilityScan HS
Frequency Mode
Data illustrates a small electrical
conduit buried among multiple
tree roots.
Crosshairs indicates position of
conduit.
Data colllected with:
UtilityScan HS
Antenna Compatibility
Models: 300/800 DF and 350 HS
Specifications
Power Mode Frequencies
50/60 Hz
Survey Cart Compatibility
Frequency Mode Presets
1, 8, 16, 33 KHz
Models: 625, 653, 654, 655
User-selectable Frequencies
20 Hz to 50 KHz
Ingress Protection
IP-65
Compliance
FCC, RSS, RoHS, CE
Operating Temperature
-20°C to 40°C (14°F to 122°F)
Warranty
2 years
