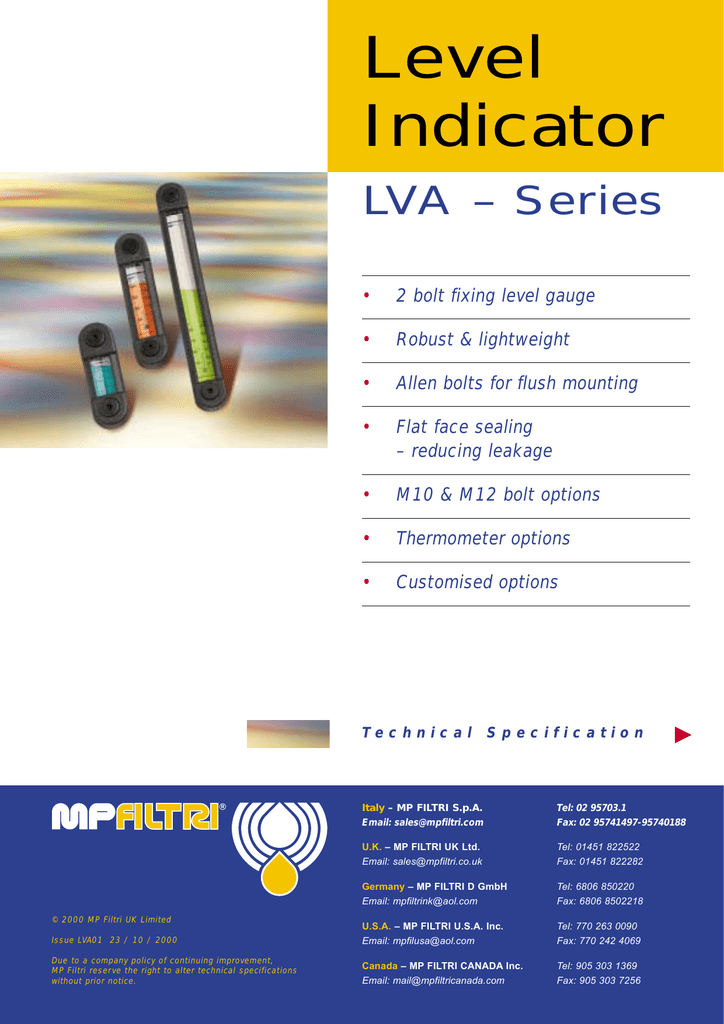

Level Indicator

Level
Indicator
•
2 bolt fixing level gauge
•
Robust & lightweight
•
Allen bolts for flush mounting
•
Flat face sealing
– reducing leakage
•
M10 & M12 bolt options
•
Thermometer options
•
Customised options
Te c h n i c a l
Specification
▼
LVA – Series
Italy – MP FILTRI S.p.A.
Email: [email protected]
Tel: 02 95703.1
Fax: 02 95741497-95740188
U.K. – MP FILTRI UK Ltd.
Email: [email protected]
Tel: 01451 822522
Fax: 01451 822282
Germany – MP FILTRI D GmbH
Email: [email protected]
Tel: 6806 850220
Fax: 6806 8502218
Issue LVA01 23 / 10 / 2000
U.S.A. – MP FILTRI U.S.A. Inc.
Email: [email protected]
Tel: 770 263 0090
Fax: 770 242 4069
Due to a company policy of continuing improvement,
MP Filtri reser ve the right to alter technical specifications
without prior notice.
Canada – MP FILTRI CANADA Inc.
Email: [email protected]
Tel: 905 303 1369
Fax: 905 303 7256
© 2000 MP Filtri UK Limited
Specification
LVA – Series
Te c h n i c a l
Data
Materials
Cover
Seals
Viewing Glass
Working Pressure
Working Temperature
Tightening Torque
Aluminium
Standard
Trogamid plastic
2 bar
–30°C to +100°C
10 Nm maximum
Fluid Compatibility
• Mineral Oils
• Synthetic fluids
• Water based emulsions
• Phosphate esters
Dimensions
17.5
Size
6
Dimensions
6
B
LVA 10
76
M10
LVA 20
127
M12
LVA 30
254
M12
A
B
A
A
38
38
LVA S
LVA T
Ordering
23
information
LVA
Size Description
(hole centres)
Accessories
Seals
10
20
30
S
A
V
76mm
127mm
254mm
T
Without
Thermometer
With
Thermometer
Options
Customised
M12
P01
P02
Buna-N
Viton
M10
U38
U12
M12 screws
(Standard for
LVA 2 0 / 3 0 )
M10 screws
(Standard for
LVA 1 0 )
3/8” UNC screws
1/2” UNC screws
Pxx
With MP Logo
Without Logo
(min. order
qty 1000 pcs)
Customised
(min. order
qty 1000 pcs)
