06026/3 bmw 3 series sedan and touring

Tel. +39 075.5280260
Fax +39 075.5287033
Via Pizzoni 37/39
06132 Perugia
ITALY
www.umbrarimorchi.it
[email protected]

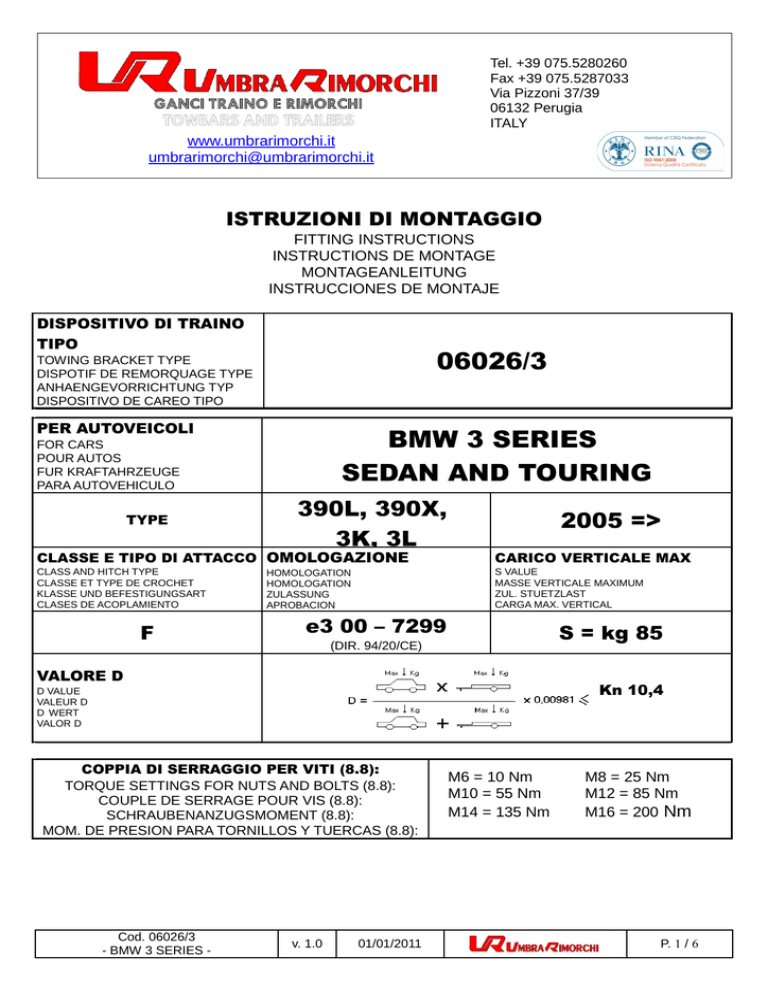

ISTRUZIONI DI MONTAGGIO
FITTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE
MONTAGEANLEITUNG
INSTRUCCIONES DE MONTAJE
DISPOSITIVO DI TRAINO
TIPO
06026/3
TOWING BRACKET TYPE
DISPOTIF DE REMORQUAGE TYPE
ANHAENGEVORRICHTUNG TYP
DISPOSITIVO DE CAREO TIPO
PER AUTOVEICOLI
BMW 3 SERIES
SEDAN AND TOURING
FOR CARS
POUR AUTOS
FUR KRAFTAHRZEUGE
PARA AUTOVEHICULO
TYPE
390L, 390X,
3K, 3L
CLASSE E TIPO DI ATTACCO OMOLOGAZIONE
CLASS AND HITCH TYPE
CLASSE ET TYPE DE CROCHET
KLASSE UND BEFESTIGUNGSART
CLASES DE ACOPLAMIENTO
F
HOMOLOGATION
HOMOLOGATION
ZULASSUNG
APROBACION
2005 =>
CARICO VERTICALE MAX
S VALUE
MASSE VERTICALE MAXIMUM
ZUL. STUETZLAST
CARGA MAX. VERTICAL
e3 00 – 7299
S = kg 85
(DIR. 94/20/CE)
VALORE D
Kn 10,4
D VALUE
VALEUR D
D WERT
VALOR D
COPPIA DI SERRAGGIO PER VITI (8.8):
TORQUE SETTINGS FOR NUTS AND BOLTS (8.8):
COUPLE DE SERRAGE POUR VIS (8.8):
SCHRAUBENANZUGSMOMENT (8.8):
MOM. DE PRESION PARA TORNILLOS Y TUERCAS (8.8):
Cod. 06026/3
- BMW 3 SERIES -
v. 1.0
01/01/2011
M6 = 10 Nm
M10 = 55 Nm
M14 = 135 Nm
M8 = 25 Nm
M12 = 85 Nm
M16 = 200 Nm
P. 1 / 6
SAFETY INSTRUCTIONS
 Make sure that the towbar is suitable for the vehicle before starting the
installation.
 For safety, all work involving towbar installation (incl. electrical components) must
be undertaken
by skilled technicians.
 Damaged components must be replaced with manufacturer’s spares and fitted by
qualified staff.
 It is forbidden to make any modification or structural repair to towing assembly.
 The towball must be kept clean and lubrificated. For added safety, his diameter
(50 mm) must be checked at regular intervals. If the towball measures less than
49 mm after selected readings across the
diameter, the towball must be
replaced with a new one.
 After 1000 km of towing, check torque settings for nuts and bolts, in accordance
with the table.
 Umbra Rimorchi cannot be held responsible for any defects in the product caused
by fault or by any injudicious use whatever of the user or a person he is liable for.
Cod. 06026/3
- BMW 3 SERIES -
v. 1.0
01/01/2011
P. 2 / 6
FITTING INSTRUCTIONS
06026/3
ATTENTION: For series 3 335i and 335d order kit 06026/3
Remove the mastic protection from your vehicle in the point where the chassis and the
tow bar are connected; then paint the mastic free pieces with the anti rust paint. There
are all necessary holes to fix the tow bar.
Remove the light clusters, and then remove the bumper;
Remove the exhaust-pipe from the reinforcement bar pushing the rubber support;
Remove the reinforcement bar from the rear part of the vehicle;
FOR VERSION 335i and 335D ONLY: remove the two supports of the silencer
from the reinforcement bar and then remove also the central support of the
bumper.
5. Make a little cut of the plastic lower cover under the bumper, as shown in the
enclosed layout;
6. Place the cross bar “A” to the rear wall referring to original screws “1”,
superimposing on the reinforcement bar and fix all the parts with original nuts;
FOR VERSION 320I ONLY: in case the central silencer support interferes the t
owbar, bend it a little bit to the engine;
7. Tighten all bolts and nuts as shown in the enclosed layout;
8. Connect the wiring to the socket following the car booklet's instructions "use and
maintenance" of the vehicle as shown in the enclosed wiring kit layout;
9. Make a little cut on the lower part of the rear bumper, as shown in the enclosed
layout;
10. Put back the exhaust-pipe, the bumper and the head lights;
11. FOR VERSION 335i and 335D ONLY: fit the Kit 06026/3 referring to holes
“3”, insert the screws and fix them. Put back the exhaust-pipe to the new supports
and then fix the bumper using the screws in position “4”.
1.
2.
3.
4.
DISAPPEARING SOCKET HOLDER
Cod. 06026/3
- BMW 3 SERIES -
v. 1.0
01/01/2011
P. 3 / 6
Cod. 06026/3
- BMW 3 SERIES -
v. 1.0
01/01/2011
P. 4 / 6
Cod. 06026/3
- BMW 3 SERIES -
v. 1.0
01/01/2011
P. 5 / 6
Cod. 06026/3
- BMW 3 SERIES -
v. 1.0
01/01/2011
P. 6 / 6
