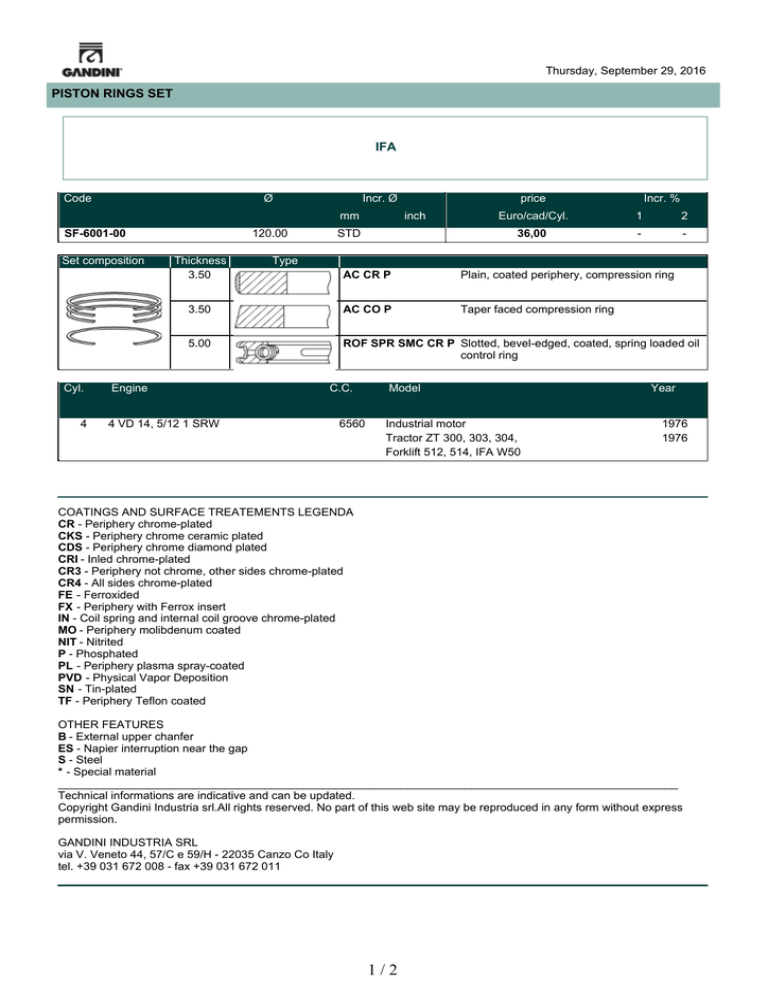

piston rings set ifa

Thursday, September 29, 2016
PISTON RINGS SET
IFA
Code
Ø
Incr. Ø
mm
SF-6001-00
Set composition
Cyl.
4
120.00
Thickness
3.50
price
inch
STD
Incr. %
Euro/cad/Cyl.
1
2
36,00
-
-
Type
AC CR P
Plain, coated periphery, compression ring
3.50
AC CO P
Taper faced compression ring
5.00
ROF SPR SMC CR P Slotted, bevel-edged, coated, spring loaded oil
control ring
Engine
C.C.
4 VD 14, 5/12 1 SRW
6560
Model
Industrial motor
Tractor ZT 300, 303, 304,
Forklift 512, 514, IFA W50
Year
1976
1976
COATINGS AND SURFACE TREATEMENTS LEGENDA
CR - Periphery chrome-plated
CKS - Periphery chrome ceramic plated
CDS - Periphery chrome diamond plated
CRI - Inled chrome-plated
CR3 - Periphery not chrome, other sides chrome-plated
CR4 - All sides chrome-plated
FE - Ferroxided
FX - Periphery with Ferrox insert
IN - Coil spring and internal coil groove chrome-plated
MO - Periphery molibdenum coated
NIT - Nitrited
P - Phosphated
PL - Periphery plasma spray-coated
PVD - Physical Vapor Deposition
SN - Tin-plated
TF - Periphery Teflon coated
OTHER FEATURES
B - External upper chanfer
ES - Napier interruption near the gap
S - Steel
* - Special material
________________________________________________________________________________________________
Technical informations are indicative and can be updated.
