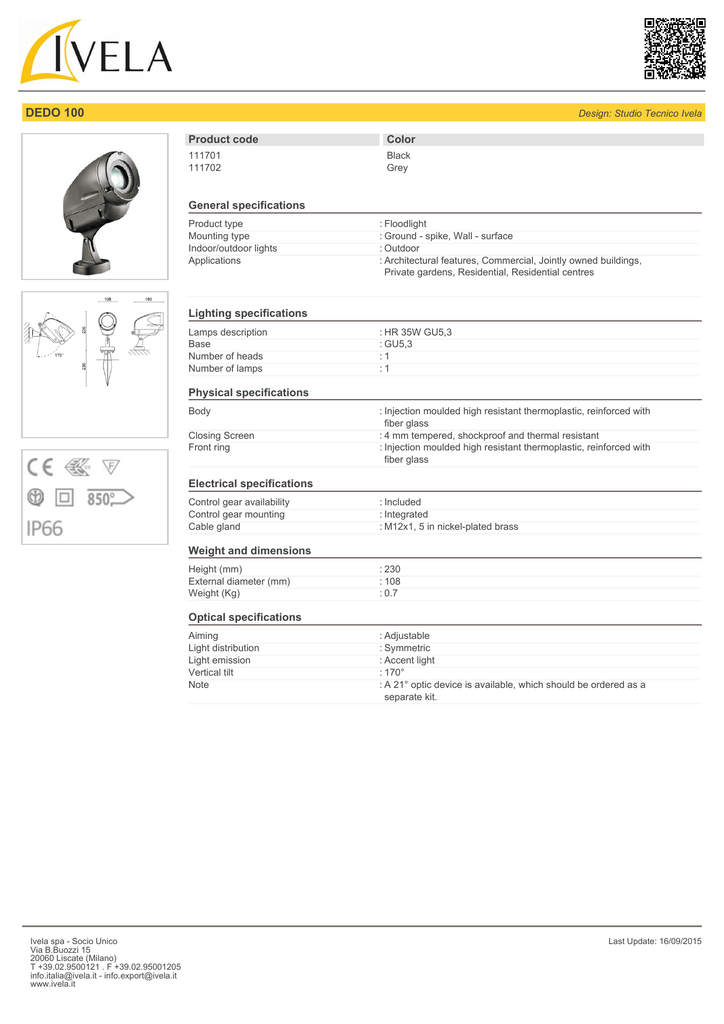

DEDO 100

DEDO 100
Design: Studio Tecnico Ivela
Product code
Color
111701
111702
Black
Grey
General specifications
Product type
Mounting type
Indoor/outdoor lights
Applications
: Floodlight
: Ground - spike, Wall - surface
: Outdoor
: Architectural features, Commercial, Jointly owned buildings,
Private gardens, Residential, Residential centres
Lighting specifications
Lamps description
Base
Number of heads
Number of lamps
: HR 35W GU5,3
: GU5,3
:1
:1
Physical specifications
Body
Closing Screen
Front ring
: Injection moulded high resistant thermoplastic, reinforced with
fiber glass
: 4 mm tempered, shockproof and thermal resistant
: Injection moulded high resistant thermoplastic, reinforced with
fiber glass
Electrical specifications
Control gear availability
Control gear mounting
Cable gland
: Included
: Integrated
: M12x1, 5 in nickel-plated brass
Weight and dimensions
Height (mm)
External diameter (mm)
Weight (Kg)
: 230
: 108
: 0.7
Optical specifications
Aiming
Light distribution
Light emission
Vertical tilt
Note
Ivela spa - Socio Unico
Via B.Buozzi 15
20060 Liscate (Milano)
T +39.02.9500121 . F +39.02.95001205
[email protected] - [email protected]
www.ivela.it
: Adjustable
: Symmetric
: Accent light
: 170°
: A 21° optic device is available, which should be ordered as a
separate kit.
Last Update: 16/09/2015
DEDO 100
Design: Studio Tecnico Ivela
Accessories
160821 10
mt. supply
cable coil,
H05RN-F 2x1
mm²
Lamps
Categories
Low voltage
Type
HR
Wattage (W)
35
Base
GU5,3
Nominal
lumens on
thermal
regime
Color Temp.
(K)
CRI
3000
8000
100
